Calibration Charts			Case = STA1W_C2 ,  Cell  =  C2															05/31/05
								STA1W - Cell 2
Simulation Period			08/01/94	03/31/05				G254 flows reduced by 20% after 2001 to close water budget (problems with UVM flow data)
Output Period:			01/01/00	03/31/05
Calibration Period:			07/01/00	08/31/04
Predicted Values for Calibration Period						Calibration Set:		none		Paired Observed & Predicted Values						FW	Not FW	GM /
Mean Depth			79	cm		K	9.7	m/yr				Depth	Flow	Load	FWM	GM	GM	FWM
Frequency Z < 10 cm			0%			C0	3.0	ppb				cm	cm/d	mg/m2-d	ppb	ppb	ppb	-
Mean Hyd Load			7.4	cm/d		C1	22	ppb		Count		51	51	51	51	51	51
Mean P Load			3828	mg/m2-yr		C2	300	ppb		Observed		78.6	6.7	7.55	113.3	88.1	86.1	0.78
Mean Flow/Width			281	m2/day		Z1	40	cm		Predicted		79.3	6.7	7.13	107.1	92.2	90.3	0.86
Hydraulic Resid Time			11	days		Z2	0	cm		Mean Resid		-0.7	0.0	0.41	6.2	-4.1	-4.3	-0.08
Inflow Conc			142	ppb		Z3	0	cm		Bias %		-1%	0%	6%	6%	-4%	-5%	-10%
FWM Outflow Conc			107	ppb		Avg Int	30	days		Residual SE%		16%	40%	40%	80%	30%	30%
GeoMn Outflow Conc			92	ppb		Area	3.81	km2

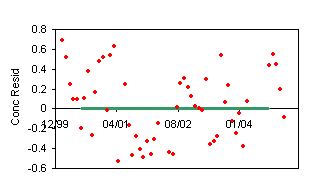

green line on axis  = calibration period					red symbols = observed				blue lines /symbols = predicted				Resid = observed - predicted,   conc log-transformed
