Calibration Charts			Case = STA5_C2AB ,  Cell  =  2B															05/31/05
								STA5 Cells 2A & 2B
Simulation Period			06/01/99	02/28/05				Includes Measured Seepage Return at Inflow
Output Period:			06/01/99	02/28/05
Calibration Period:			09/01/03	02/28/05
Predicted Values for Calibration Period						Calibration Set:		none		Paired Observed & Predicted Values						FW	Not FW	GM /
Mean Depth			34	cm		K	16.3	m/yr				Depth	Flow	Load	FWM	GM	GM	FWM
Frequency Z < 10 cm			5%			C0	3.0	ppb				cm	cm/d	mg/m2-d	ppb	ppb	ppb	-
Mean Hyd Load			3.4	cm/d		C1	22	ppb		Count		19	19	19	17	17	17
Mean P Load			2567	mg/m2-yr		C2	300	ppb		Observed		36.9	2.5	3.36	134.0	104.3	111.7	0.78
Mean Flow/Width			109	m2/day		Z1	40	cm		Predicted		33.7	2.9	3.25	110.3	117.8	226.9	1.07
Hydraulic Resid Time			10	days		Z2	0	cm		Mean Resid		3.2	-0.4	0.10	23.7	-13.5	-115.2	-0.29
Inflow Conc			205	ppb		Z3	0	cm		Bias %		9%	-15%	3%	22%	-11%	-51%	-27%
FWM Outflow Conc			110	ppb		Avg Int	30	days		Residual SE%		46%	39%	39%	316%	45%	45%
GeoMn Outflow Conc			118	ppb		Area	4.937	km2

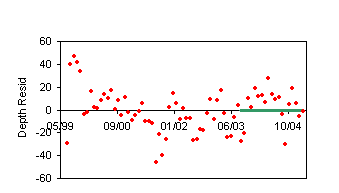

green line on axis  = calibration period					red symbols = observed				blue lines /symbols = predicted				Resid = observed - predicted,   conc log-transformed
