Calibration Charts			Case = ENRP_C1 ,  Cell  =  C1															05/31/05
								ENRP Cell 1 + Buffer Cell combined
Simulation Period			08/01/94	12/31/98				Seepage return treated as external inflow
Output Period:			08/01/94	12/31/98				Prior to STA1W construction
Calibration Period:			01/01/97	12/31/98
Predicted Values for Calibration Period						Calibration Set:		EMG_3		Paired Observed & Predicted Values						FW	Not FW	GM /
Mean Depth			49	cm		K	16.9	m/yr				Depth	Flow	Load	FWM	GM	GM	FWM
Frequency Z < 10 cm			0%			C0	3.0	ppb				cm	cm/d	mg/m2-d	ppb	ppb	ppb	-
Mean Hyd Load			2.9	cm/d		C1	22	ppb		Count		25	25	25	25	25	25
Mean P Load			946	mg/m2-yr		C2	300	ppb		Observed		49.9	1.9	0.72	38.7	39.5	39.6	1.02
Mean Flow/Width			117	m2/day		Z1	40	cm		Predicted		49.3	2.6	1.04	40.5	38.9	38.0	0.96
Hydraulic Resid Time			17	days		Z2	100	cm		Mean Resid		0.7	-0.7	-0.32	-1.8	0.6	1.6	0.06
Inflow Conc			89	ppb		Z3	400	cm		Bias %		1%	-27%	-31%	-5%	1%	4%	6%
FWM Outflow Conc			41	ppb		Avg Int	30	days		Residual SE%		10%	42%	42%	51%	38%	38%
GeoMn Outflow Conc			39	ppb		Area	6.03	km2

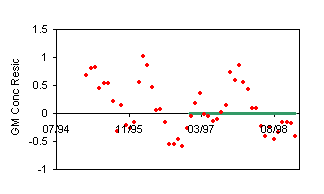

green line on axis  = calibration period					red symbols = observed				blue lines /symbols = predicted				Resid = observed - predicted,   conc log-transformed
