Calibration Charts			Case = ISTOK_2 ,  Cell  =  -															05/31/05
								compiled by burns & mcdonnell
Simulation Period			01/01/89	12/31/02
Output Period:			01/01/89	12/31/02
Calibration Period:			01/01/90	12/31/02
Predicted Values for Calibration Period						Calibration Set:		RES_3		Paired Observed & Predicted Values						FW	Not FW	GM /
Mean Depth			158	cm		K	5.0	m/yr				Depth	Flow	Load	FWM	GM	GM	FWM
Frequency Z < 10 cm			0%			C0	3.0	ppb				cm	cm/d	mg/m2-d	ppb	ppb	ppb	-
Mean Hyd Load			0.9	cm/d		C1	150	ppb		Count		53	53	53	51	51	51
Mean P Load			377	mg/m2-yr		C2	0	ppb		Observed		160.7	0.8	0.44	54.0	42.1	41.1	0.78
Mean Flow/Width			107	m2/day		Z1	40	cm		Predicted		158.0	0.8	0.45	57.2	52.2	51.4	0.91
Hydraulic Resid Time			178	days		Z2	100	cm		Mean Resid		2.7	0.0	-0.01	-3.2	-10.0	-10.3	-0.13
Inflow Conc			116	ppb		Z3	400	cm		Bias %		2%	4%	-2%	-6%	-19%	-20%	-14%
FWM Outflow Conc			57	ppb		Avg Int	90	days		Residual SE%		8%	42%	42%	168%	46%	46%
GeoMn Outflow Conc			52	ppb		Area	112.05	km2

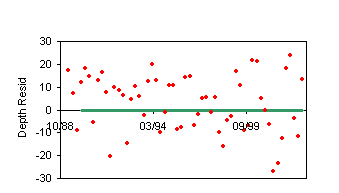

green line on axis  = calibration period					red symbols = observed				blue lines /symbols = predicted				Resid = observed - predicted,   conc log-transformed
