Calibration Charts			Case = ENRP_C13 ,  Cell  =  C1															06/01/05
								ENRP Cells 1 & 3 in series
Simulation Period			08/01/94	12/31/98				Prior to STA1W construction
Output Period:			08/01/94	12/31/98				Inflows include measured seepage return
Calibration Period:			01/01/97	12/31/98
Predicted Values for Calibration Period						Calibration Set:		EMG_3		Paired Observed & Predicted Values						FW	Not FW	GM /
Mean Depth			54	cm		K	16.8	m/yr				Depth	Flow	Load	FWM	GM	GM	FWM
Frequency Z < 10 cm			0%			C0	3.0	ppb				cm	cm/d	mg/m2-d	ppb	ppb	ppb	-
Mean Hyd Load			2.9	cm/d		C1	22	ppb		Count		25	25	25	25	25	25
Mean P Load			946	mg/m2-yr		C2	300	ppb		Observed		49.9	1.9	0.72	38.7	39.5	39.6	1.02
Mean Flow/Width			133	m2/day		Z1	40	cm		Predicted		54.2	2.3	0.93	40.0	38.2	37.4	0.96
Hydraulic Resid Time			19	days		Z2	100	cm		Mean Resid		-4.2	-0.5	-0.21	-1.3	1.3	2.2	0.07
Inflow Conc			89	ppb		Z3	200	cm		Bias %		-8%	-20%	-22%	-3%	3%	6%	7%
FWM Outflow Conc			40	ppb		Avg Int	30	days		Residual SE%		12%	39%	39%	47%	38%	38%
GeoMn Outflow Conc			38	ppb		Area	6.03	km2

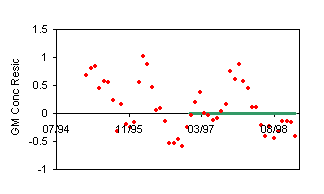

green line on axis  = calibration period					red symbols = observed				blue lines /symbols = predicted				Resid = observed - predicted,   conc log-transformed
