Calibration Charts			Case = STA34_C1AB ,  Cell  =  1B															06/01/05
								STA34 Cells 1A & 1B
Simulation Period			10/01/03	03/31/05				Inflows from G370
Output Period:			10/01/03	03/31/05
Calibration Period:			04/01/04	03/31/05
Predicted Values for Calibration Period						Calibration Set:		EMG_3		Paired Observed & Predicted Values						FW	Not FW	GM /
Mean Depth			47	cm		K	16.8	m/yr				Depth	Flow	Load	FWM	GM	GM	FWM
Frequency Z < 10 cm			19%			C0	3.0	ppb				cm	cm/d	mg/m2-d	ppb	ppb	ppb	-
Mean Hyd Load			6.1	cm/d		C1	22	ppb		Count		17	53	53	34	34	34
Mean P Load			1303	mg/m2-yr		C2	300	ppb		Observed		48.5	6.1	0.72	11.9	11.9	11.9	1.00
Mean Flow/Width			192	m2/day		Z1	40	cm		Predicted		53.5	5.6	1.97	35.0	21.7	23.0	0.62
Hydraulic Resid Time			8	days		Z2	100	cm		Mean Resid		-5.0	0.4	-1.25	-23.1	-9.8	-11.0	0.38
Inflow Conc			58	ppb		Z3	200	cm		Bias %		-9%	8%	-63%	-66%	-45%	-48%	62%
FWM Outflow Conc			35	ppb		Avg Int	7	days		Residual SE%		26%	58%	58%	172%	83%	83%
GeoMn Outflow Conc			22	ppb		Area	14.115	km2

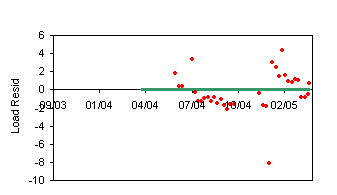

green line on axis  = calibration period					red symbols = observed				blue lines /symbols = predicted				Resid = observed - predicted,   conc log-transformed
