DMSTA Simulation Results				Case:	GEORGE		Period:	2/20/1994	to	9/30/2003
Case:	mainstem st john's river; tp excursion 2001-2003 unexplained; missing inflow data jan-july 2001; 14-day average inflows
Input Series		GEORGE_AVG			Tanks in Series		2.0	Surface Area (km2)		186.2507
Simulation Period		02/21/89	thru	09/30/03	Mean Water Load  (cm/d)		5.6	Mean Depth (cm)		344
Output Period		02/20/94	thru	09/30/03	Max Water Load (cm/d)		16.8	Max Depth (cm)		388

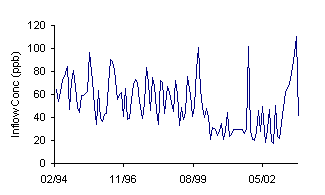

Calib Period		02/20/95		12/31/00	Inflow Conc  (ppb)		52.4	Freq Depth <  5 cm		0.0%

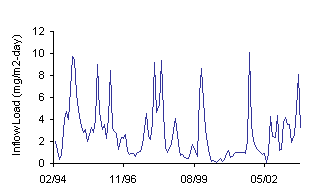

Startup Interval (days)		2190	Iterations	-5	Inflow P Load (mg/m2-yr)		1010	Load Reduction		-6%
Avg Interval (days)		30	Wtr Bal Error	0.0%	Outflow FWM  Conc (ppb)		54.9	Conc Reduction		-5%
Parameter Set:		none	Mass B Error	0.0%	Outflow C with Bypass		54.9	Time Freq Conc > 10 ppb		100%
K (m/yr)		0.054	Kd (m/yr)	0	95th Percentile (ppb)		77.3	K - SS, C*=4 ppb (m/yr)		-0.3
C1 (ppb)		150.0	Weir Depth (cm)	310	Outflow Geo. Mean (ppb)		53.1	Storage Turnover (1/yr)		0.1
C0  (ppb)		4.0	Cont Depth (cm)	0	Outflow GM,  Q>0 (ppb)		53.1	Mean Stored P (mg/m2)		497
C2 (ppb)		0	Qout Intercept	5.0	Seepage Loss		0%	Storage Inc/Net Removal		#N/A
Zx  (cm)		40	Qout Exponent	1.5	HRT (days)		64.2	Outfl. Seepage (cm/d/cm)		0
Ki	E/m2-d	0	0	Model 2	Mean Biomass (g/m2)		#N/A	Biomass Turnover (1/yr)		#N/A
Kb	1/d	0	0	"	Gross PP  (g/m2-d)		#N/A	Total Resp (g/m2-d)		#N/A
Kr	1/d/g/m2	0	0	"
Ka	1/d	0	0	"
Kc	ppb	0	0	"
Ke	1/d	0	0	"
Ku	mg/m2	0	0	"
Calibration  Statistics for Period:			02/20/95	thru	12/31/00
						Mean	Mean
Inflow P Conc (ppb)  =		56	Count	Observed	Predicted	Residual	Resid%	RSE%	R2

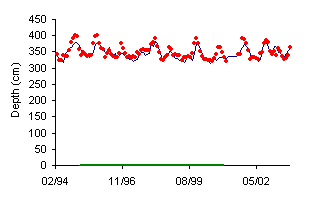

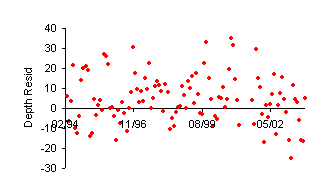

Mean Depth (cm)			71	348.2	341.7	6.5	2%	4%	53%

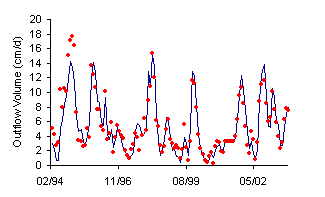

Flow (cm/day)			71	4.67	4.81	-0.14	-3%	25%	88%
Flow-Wtd-Mean Conc (ppb)			71	66.4	58.8	7.6	13%
Geometric Mean Conc (ppb)			71	61.9	58.6	3.3	6%	24%	0%
Mean Conc (ppb)			71	63.5	59.4	4.0	7%	23%	0%

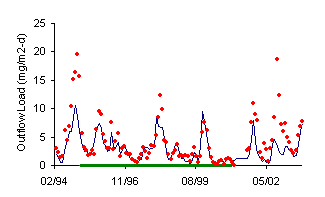

Outflow Load (mg/m2-d)			71	3.09	2.83	0.26	9%	43%	73%
Pred Q x Conc (mg/m2-d)			71	3.19	2.83	0.37	13%	41%	78%
Conc Reduction (%)			71	-19%	-6%	-0.14	-14%

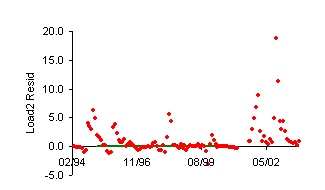

Obs Load2 = Predicted Flow x Observed Conc

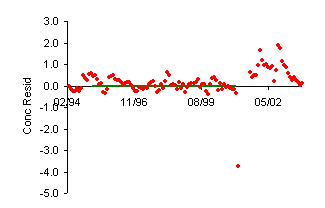

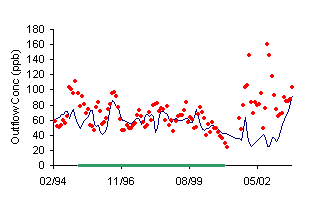

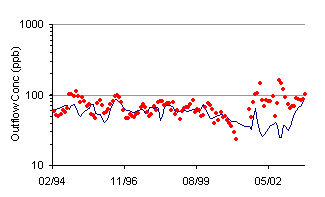

Green lines on x axis of concentration plots indicate model calibration period.  Statistics at top of sheet are for entire output period.
03/02/05
