DMSTA Simulation Results				Case:	OKEE_8794		Period:	1/1/1984	to	12/31/1997
Case:	calib to 1987-1994; observed concs in pelagic zone; simulation affected by intial condition
Input Series		OKEECHOBEE			Tanks in Series		1.0	Surface Area (km2)		1732.0000
Simulation Period		01/03/76	thru	12/31/97	Mean Water Load  (cm/d)		0.7	Mean Depth (cm)		265
Output Period		01/01/84	thru	12/31/97	Max Water Load (cm/d)		1.8	Max Depth (cm)		351
Calib Period		01/01/87		12/31/94	Inflow Conc  (ppb)		169.3	Freq Depth <  5 cm		0.0%

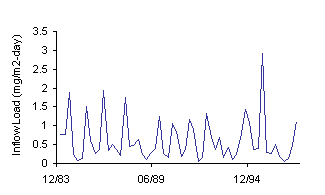

Startup Interval (days)		4016	Iterations	-5	Inflow P Load (mg/m2-yr)		230	Load Reduction		62%
Avg Interval (days)		90	Wtr Bal Error	0.0%	Outflow FWM  Conc (ppb)		93.8	Conc Reduction		45%
Parameter Set:		none	Mass B Error	-0.1%	Outflow C with Bypass		93.8	Time Freq Conc > 10 ppb		43%
K (m/yr)		1.964	Kd (m/yr)	0	95th Percentile (ppb)		114.8	K - SS, C*=4 ppb (m/yr)		1.8
C1 (ppb)		150.0	Weir Depth (cm)	0	Outflow Geo. Mean (ppb)		94.9	Storage Turnover (1/yr)		7.0

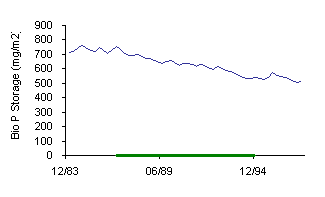

C0  (ppb)		4.0	Cont Depth (cm)	0	Outflow GM,  Q>0 (ppb)		93.8	Mean Stored P (mg/m2)		629
C2 (ppb)		0	Qout Intercept	0.0	Seepage Loss		0%	Storage Inc/Net Removal		-8%
Zx  (cm)		40	Qout Exponent	0.0	HRT (days)		1041.5	Outfl. Seepage (cm/d/cm)		0
Ki	E/m2-d	0	0	Model 2	Mean Biomass (g/m2)		#N/A	Biomass Turnover (1/yr)		#N/A
Kb	1/d	0	0	"	Gross PP  (g/m2-d)		#N/A	Total Resp (g/m2-d)		#N/A
Kr	1/d/g/m2	0	0	"
Ka	1/d	0	0	"
Kc	ppb	0	0	"
Ke	1/d	0	0	"
Ku	mg/m2	0	0	"
Calibration  Statistics for Period:			01/01/87	thru	12/31/94
						Mean	Mean
Inflow P Conc (ppb)  =		161	Count	Observed	Predicted	Residual	Resid%	RSE%	R2

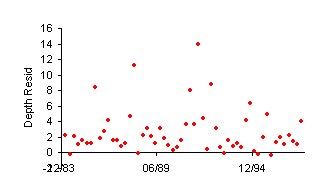

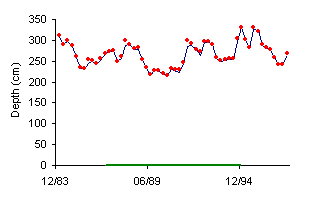

Mean Depth (cm)			32	261.4	258.3	3.1	1%	2%	97%

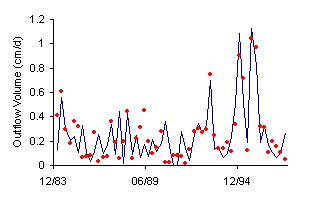

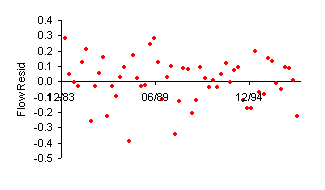

Flow (cm/day)			32	0.21	0.21	0.00	-1%	72%	9%
Flow-Wtd-Mean Conc (ppb)			32	96.2	94.8	1.4	1%
Geometric Mean Conc (ppb)			32	94.6	94.8	-0.2	0%	23%	4%
Mean Conc (ppb)			32	98.5	95.1	2.3	2%	24%	4%
Outflow Load (mg/m2-d)			32	0.21	0.20	0.01	5%	81%	10%
Pred Q x Conc (mg/m2-d)			32	0.20	0.20	0.00	1%	26%	90%
Conc Reduction (%)			32	40%	41%	-0.01	-1%

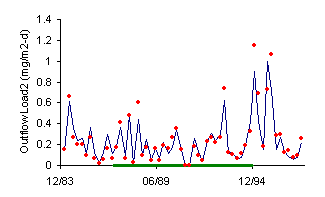

Obs Load2 = Predicted Flow x Observed Conc

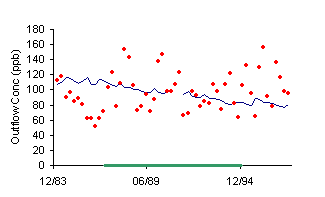

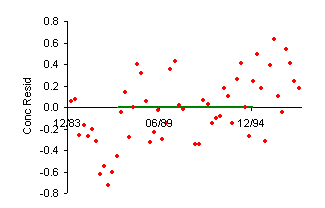

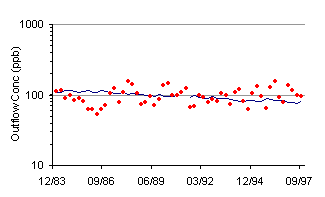

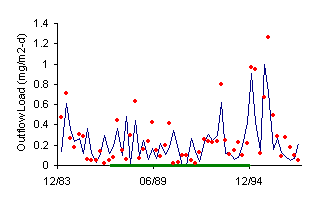

Green lines on x axis of concentration plots indicate model calibration period.  Statistics at top of sheet are for entire output period.
03/02/05
