DMSTA Simulation Results				Case:	C111_E2		Period:	01/01/97	to	12/31/00
Case:	C111 - Periphyton Area - East Transect - Inflow from E1/W1
Input Series		E2_Q2			Tanks in Series		2.0	Surface Area (km2)		3.7576
Simulation Period		01/01/95	thru	12/31/00	Mean Water Load  (cm/d)		9.2	Bypass Volume		0.0%
Output Period		01/01/97	thru	12/31/00	Max Water Load (cm/d)		48.7	Mean Depth (cm)		9
Startup Interval (days)		1673	Iterations	1	Inflow Conc  (ppb)		6.6	Max Depth (cm)		26
Avg Interval (days)		7			Inflow P Load (mg/m2-yr)		266	Freq Depth <  5 cm		2.7%
Parameter Set:		none			Outflow FWM  Conc (ppb)		6.7	Load Reduction		-2%
K  (m/yr)		20.47	Sm (mg/m2)	0	Outflow C with Bypass		6.7	Time Freq Conc > 10 ppb		5%
C1 (ppb)		22.0	Sp (mg/m2)	0	95th Percentile (ppb)		10.6	Vol Freq Conc > 10 ppb		9%
C0  (ppb)		4.0	Qout Intercept	5.0	Outflow Geo. Mean (ppb)		5.9	Storage Turnover (1/yr)		0.6
Zx  (cm)		0	Qout Exponent	2.0	Outflow GM,  Q>0 (ppb)		5.9	Mean Stored P (mg/m2)		69
Wtr Bal Error		0.0%			Knet-Plug Flow (m/yr)		6.7	Storage Inc/Net Removal		21%
Mass B Error		0.1%			Knet-NCSTR (m/yr)		7.0	Outfl. Seepage (cm/d/cm)		0
Ki	E/m2-d	0	0	Model 2	Mean Biomass (g/m2)		#N/A	Biomass Turnover (1/yr)		#N/A
Kb	1/d	0	0	"	Gross PP  (g/m2-d)		#N/A	Total Resp (g/m2-d)		#N/A
Kr	1/d/g/m2	0	0	"
Ka	1/d	0	0	"
Kc	ppb	0	0	"
Ke	1/d	0	0	"
Ku	mg/m2	0	0	"
Calibration  Statistics for Period:			08/01/99	thru	12/31/00	Mean	Mean
			Count	Observed	Predicted	Residual	Resid%	RSE%	R2
Mean Depth (cm)			19	12.1	12.1	0.0	0%	71%	0%
Flow (cm/day)			0	#N/A	#N/A	#N/A	#N/A	#N/A	#N/A
Flow-Wtd-Mean Conc (ppb)			35	7.5	6.8	0.7	10%
Geometric Mean Conc (ppb)			35	6.3	6.4	-0.1	-1%	35%	0%
Mean Conc (ppb)			35	6.8	6.6	0.2	3%	38%	0%
Outflow Load (mg/m2-d)			0	#N/A	#N/A	#N/A	#N/A	#N/A	#N/A
Pred Q x Conc (mg/m2-d)			35	1.15	1.04	0.11	10%	38%	72%

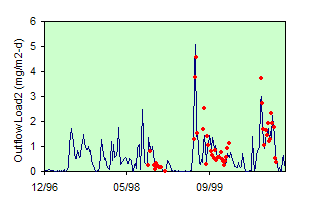

Obs Load2 = Predicted Flow x Obs Conc

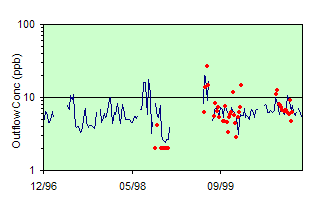

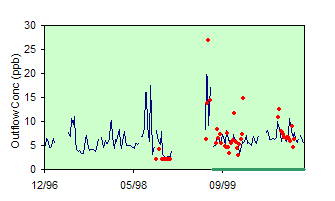

Green lines on x axis of concentration plots indicate model calibration period.
06/07/02
