DMSTA Simulation Results				Case:	Cell-3		Period:	02/01/95	to	09/30/01
Case:	ENRP Cell 3
Input Series		Cell3_f			Tanks in Series		3.0	Surface Area (km2)		3.4786
Simulation Period		02/01/95	thru	09/30/01	Mean Water Load  (cm/d)		6.3	Bypass Volume		0.0%
Output Period		02/01/95	thru	09/30/01	Max Water Load (cm/d)		53.9	Mean Depth (cm)		48
Startup Interval (days)		486	Iterations	1	Inflow Conc  (ppb)		36.9	Max Depth (cm)		106
Avg Interval (days)		7			Inflow P Load (mg/m2-yr)		518	Freq Depth <  5 cm		0.0%
Parameter Set:		none			Outflow FWM  Conc (ppb)		21.0	Load Reduction		40%
K  (m/yr)		20.95	Sm (mg/m2)	0	Outflow C with Bypass		21.0	Time Freq Conc > 10 ppb		94%
C1 (ppb)		22.0	Sp (mg/m2)	0	95th Percentile (ppb)		30.8	Vol Freq Conc > 10 ppb		100%
C0  (ppb)		4.0	Qout Intercept	0.0	Outflow Geo. Mean (ppb)		19.9	Storage Turnover (1/yr)		1.8
Zx  (cm)		60	Qout Exponent	0.0	Outflow GM,  Q>0 (ppb)		20.1	Mean Stored P (mg/m2)		783
Wtr Bal Error		0.0%			Knet-Plug Flow (m/yr)		11.8	Storage Inc/Net Removal		9%
Mass B Error		-0.1%			Knet-NCSTR (m/yr)		13.0	Outfl. Seepage (cm/d/cm)		0.008
Ki	E/m2-d	0	0	Model 2	Mean Biomass (g/m2)		#N/A	Biomass Turnover (1/yr)		#N/A
Kb	1/d	0	0	"	Gross PP  (g/m2-d)		#N/A	Total Resp (g/m2-d)		#N/A
Kr	1/d/g/m2	0	0	"
Ka	1/d	0	0	"
Kc	ppb	0	0	"
Ke	1/d	0	0	"
Ku	mg/m2	0	0	"
Calibration  Statistics for Period:			06/01/96	thru	09/30/01	Mean	Mean
			Count	Observed	Predicted	Residual	Resid%	RSE%	R2
Mean Depth (cm)			278	48.7	48.3	0.3	1%	3%	99%
Flow (cm/day)			0	#N/A	#N/A	#N/A	#N/A	#N/A	#N/A
Flow-Wtd-Mean Conc (ppb)			273	20.2	19.3	0.8	4%
Geometric Mean Conc (ppb)			273	19.4	19.6	-0.1	-1%	32%	11%
Mean Conc (ppb)			273	20.7	20.1	0.6	3%	38%	7%
Outflow Load (mg/m2-d)			0	#N/A	#N/A	#N/A	#N/A	#N/A	#N/A
Pred Q x Conc (mg/m2-d)			278	1.00	0.96	0.04	4%	55%	71%

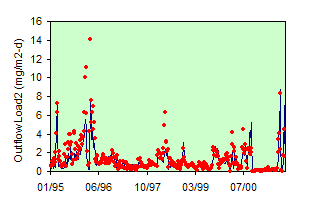

Obs Load2 = Predicted Flow x Obs Conc

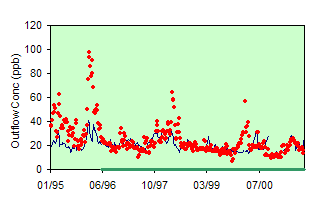

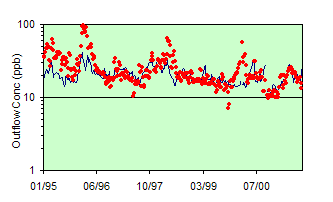

Green lines on x axis of concentration plots indicate model calibration period.
06/07/02
