DMSTA Simulation Results				Case:	MD_N4_EMER_DO		Period:	03/01/99	to	02/28/01
Case:	Macrophyte Dryout Study - North 4 - Emergent Dryout
Input Series		MDOS_N4			Tanks in Series		1.3	Surface Area (km2)		0.0000
Simulation Period		03/01/99	thru	02/28/01	Mean Water Load  (cm/d)		2.5	Bypass Volume		0.0%
Output Period		03/01/99	thru	02/28/01	Max Water Load (cm/d)		42.6	Mean Depth (cm)		33
Startup Interval (days)		366	Iterations	1	Inflow Conc  (ppb)		99.5	Max Depth (cm)		60

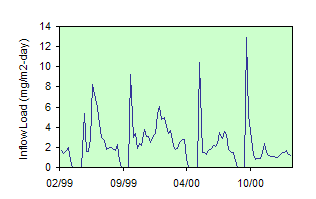

Avg Interval (days)		7			Inflow P Load (mg/m2-yr)		690	Freq Depth <  5 cm		17.3%
Parameter Set:		none			Outflow FWM  Conc (ppb)		43.6	Load Reduction		57%
K  (m/yr)		11.43	Sm (mg/m2)	0	Outflow C with Bypass		43.6	Time Freq Conc > 10 ppb		79%
C1 (ppb)		22.0	Sp (mg/m2)	0	95th Percentile (ppb)		61.8	Vol Freq Conc > 10 ppb		100%
C0  (ppb)		4.0	Qout Intercept	0.0	Outflow Geo. Mean (ppb)		62.7	Storage Turnover (1/yr)		1.5
Zx  (cm)		60	Qout Exponent	0.0	Outflow GM,  Q>0 (ppb)		38.8	Mean Stored P (mg/m2)		915
Wtr Bal Error		0.0%			Knet-Plug Flow (m/yr)		8.5	Storage Inc/Net Removal		65%
Mass B Error		-2.8%			Knet-NCSTR (m/yr)		12.3	Outfl. Seepage (cm/d/cm)		0
Ki	E/m2-d	0	0	Model 2	Mean Biomass (g/m2)		#N/A	Biomass Turnover (1/yr)		#N/A
Kb	1/d	0	0	"	Gross PP  (g/m2-d)		#N/A	Total Resp (g/m2-d)		#N/A
Kr	1/d/g/m2	0	0	"
Ka	1/d	0	0	"
Kc	ppb	0	0	"
Ke	1/d	0	0	"
Ku	mg/m2	0	0	"
Calibration  Statistics for Period:			03/01/00	thru	02/28/01	Mean	Mean
			Count	Observed	Predicted	Residual	Resid%	RSE%	R2

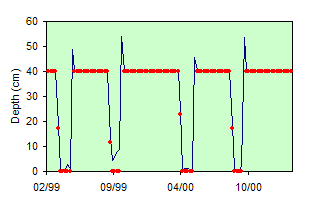

Mean Depth (cm)			50	32.0	32.3	-0.3	-1%	2%	100%
Flow (cm/day)			0	#N/A	#N/A	#N/A	#N/A	#N/A	#N/A
Flow-Wtd-Mean Conc (ppb)			42	37.3	40.8	-3.5	-9%
Geometric Mean Conc (ppb)			42	34.1	36.8	-2.7	-7%	40%	29%
Mean Conc (ppb)			42	38.5	38.8	-0.3	-1%	44%	33%

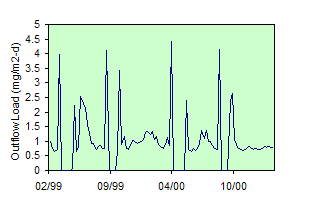

Outflow Load (mg/m2-d)			0	#N/A	#N/A	#N/A	#N/A	#N/A	#N/A
Pred Q x Conc (mg/m2-d)			43	1.00	1.09	-0.09	-9%	88%	1%

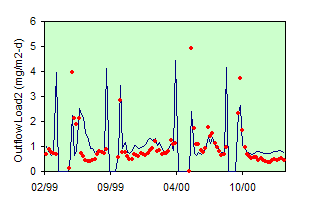

Obs Load2 = Predicted Flow x Obs Conc

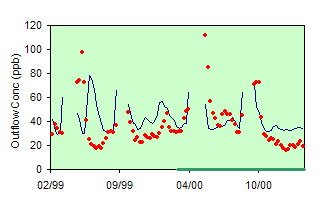

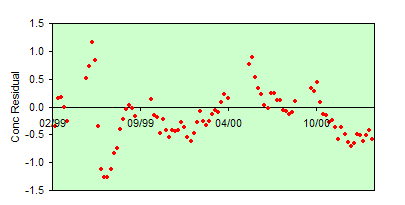

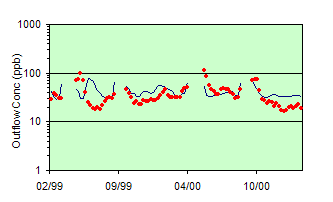

Green lines on x axis of concentration plots indicate model calibration period.
06/07/02
