DMSTA Simulation Results				Case:	MD_S1_SAV_C		Period:	03/01/00	to	02/28/01
Case:	Macrophyte Dryout Study - South 1 - Submergent Control
Input Series		MDOS_S1			Tanks in Series		1.3	Surface Area (km2)		0.0000
Simulation Period		03/01/00	thru	02/28/01	Mean Water Load  (cm/d)		2.9	Bypass Volume		0.0%

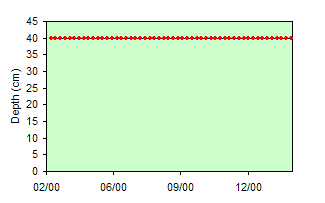

Output Period		03/01/00	thru	02/28/01	Max Water Load (cm/d)		2.9	Mean Depth (cm)		40
Startup Interval (days)		245	Iterations	1	Inflow Conc  (ppb)		23.7	Max Depth (cm)		40
Avg Interval (days)		7			Inflow P Load (mg/m2-yr)		185	Freq Depth <  5 cm		0.0%
Parameter Set:		none			Outflow FWM  Conc (ppb)		9.0	Load Reduction		63%
K  (m/yr)		55.52	Sm (mg/m2)	0	Outflow C with Bypass		9.0	Time Freq Conc > 10 ppb		15%
C1 (ppb)		22.0	Sp (mg/m2)	0	95th Percentile (ppb)		11.4	Vol Freq Conc > 10 ppb		15%
C0  (ppb)		4.0	Qout Intercept	0.0	Outflow Geo. Mean (ppb)		8.9	Storage Turnover (1/yr)		1.8
Zx  (cm)		60	Qout Exponent	0.0	Outflow GM,  Q>0 (ppb)		8.9	Mean Stored P (mg/m2)		198

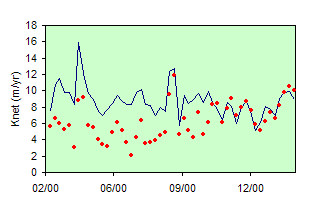

Wtr Bal Error		0.0%			Knet-Plug Flow (m/yr)		10.4	Storage Inc/Net Removal		-11%
Mass B Error		0.0%			Knet-NCSTR (m/yr)		16.6	Outfl. Seepage (cm/d/cm)		0
Ki	E/m2-d	0	0	Model 2	Mean Biomass (g/m2)		#N/A	Biomass Turnover (1/yr)		#N/A
Kb	1/d	0	0	"	Gross PP  (g/m2-d)		#N/A	Total Resp (g/m2-d)		#N/A
Kr	1/d/g/m2	0	0	"
Ka	1/d	0	0	"
Kc	ppb	0	0	"
Ke	1/d	0	0	"
Ku	mg/m2	0	0	"
Calibration  Statistics for Period:			11/01/00	thru	02/28/01	Mean	Mean
			Count	Observed	Predicted	Residual	Resid%	RSE%	R2
Mean Depth (cm)			17	39.9	39.9	0.0	0%	0%	#N/A
Flow (cm/day)			0	#N/A	#N/A	#N/A	#N/A	#N/A	#N/A
Flow-Wtd-Mean Conc (ppb)			17	8.0	8.0	0.0	0%
Geometric Mean Conc (ppb)			17	8.0	8.0	0.0	0%	9%	0%
Mean Conc (ppb)			17	8.0	8.0	0.0	0%	9%	0%
Outflow Load (mg/m2-d)			0	#N/A	#N/A	#N/A	#N/A	#N/A	#N/A
Pred Q x Conc (mg/m2-d)			17	0.19	0.19	0.00	0%	9%	0%

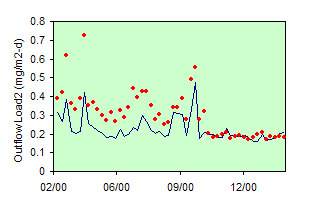

Obs Load2 = Predicted Flow x Obs Conc

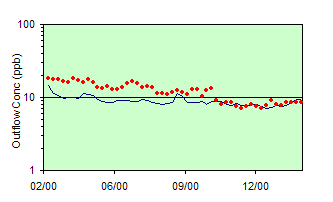

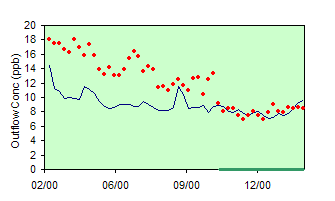

Green lines on x axis of concentration plots indicate model calibration period.
06/07/02
