DMSTA Simulation Results				Case:	PP_12_PE		Period:	04/06/99	to	10/02/00
Case:	PSTA Research, TMT = PP_12, UNIT = PORTA 24, Substrate = PE
Input Series		PP_12			Tanks in Series		1.5	Surface Area (km2)		0.0000

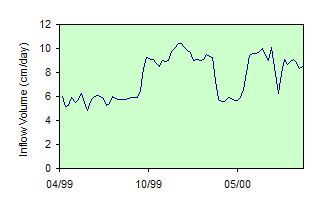

Simulation Period		04/06/99	thru	10/02/00	Mean Water Load  (cm/d)		8.0	Bypass Volume		0.0%

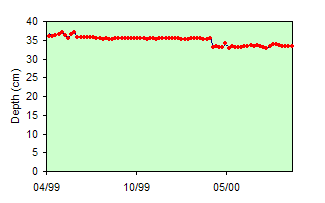

Output Period		04/06/99	thru	10/02/00	Max Water Load (cm/d)		10.6	Mean Depth (cm)		35
Startup Interval (days)		178	Iterations	1	Inflow Conc  (ppb)		24.1	Max Depth (cm)		42
Avg Interval (days)		7			Inflow P Load (mg/m2-yr)		781	Freq Depth <  5 cm		0.0%
Parameter Set:		none			Outflow FWM  Conc (ppb)		20.7	Load Reduction		13%
K  (m/yr)		13.76	Sm (mg/m2)	0	Outflow C with Bypass		20.7	Time Freq Conc > 10 ppb		100%
C1 (ppb)		22.0	Sp (mg/m2)	0	95th Percentile (ppb)		38.9	Vol Freq Conc > 10 ppb		100%
C0  (ppb)		4.0	Qout Intercept	0.0	Outflow Geo. Mean (ppb)		20.5	Storage Turnover (1/yr)		1.3
Zx  (cm)		0	Qout Exponent	0.0	Outflow GM,  Q>0 (ppb)		20.5	Mean Stored P (mg/m2)		396
Wtr Bal Error		0.0%			Knet-Plug Flow (m/yr)		12.4	Storage Inc/Net Removal		71%
Mass B Error		-0.2%			Knet-NCSTR (m/yr)		14.5	Outfl. Seepage (cm/d/cm)		0
Ki	E/m2-d	0	0	Model 2	Mean Biomass (g/m2)		#N/A	Biomass Turnover (1/yr)		#N/A
Kb	1/d	0	0	"	Gross PP  (g/m2-d)		#N/A	Total Resp (g/m2-d)		#N/A
Kr	1/d/g/m2	0	0	"
Ka	1/d	0	0	"
Kc	ppb	0	0	"
Ke	1/d	0	0	"
Ku	mg/m2	0	0	"
Calibration  Statistics for Period:			10/01/99	thru	10/02/00	Mean	Mean
			Count	Observed	Predicted	Residual	Resid%	RSE%	R2
Mean Depth (cm)			53	34.4	34.4	0.0	0%	0%	100%
Flow (cm/day)			0	#N/A	#N/A	#N/A	#N/A	#N/A	#N/A
Flow-Wtd-Mean Conc (ppb)			53	18.3	18.3	-0.1	0%
Geometric Mean Conc (ppb)			53	18.1	18.1	0.0	0%	20%	24%
Mean Conc (ppb)			53	18.6	18.3	0.2	1%	21%	20%
Outflow Load (mg/m2-d)			0	#N/A	#N/A	#N/A	#N/A	#N/A	#N/A
Pred Q x Conc (mg/m2-d)			53	1.54	1.54	0.00	0%	22%	30%

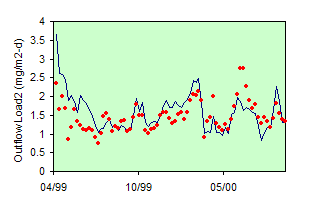

Obs Load2 = Predicted Flow x Obs Conc

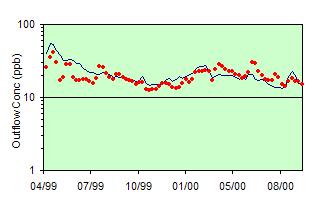

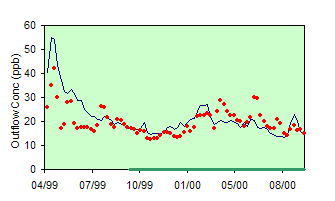

Green lines on x axis of concentration plots indicate model calibration period.
