DMSTA Simulation Results				Case:	PP_8_SA		Period:	04/06/99	to	02/01/00
Case:	PSTA Research, TMT = PP_8, UNIT = PORTA 20, Substrate = SA
Input Series		PP_8_17			Tanks in Series		1.5	Surface Area (km2)		0.0000
Simulation Period		04/06/99	thru	02/01/00	Mean Water Load  (cm/d)		7.2	Bypass Volume		0.0%
Output Period		04/06/99	thru	02/01/00	Max Water Load (cm/d)		12.2	Mean Depth (cm)		70
Startup Interval (days)		178	Iterations	1	Inflow Conc  (ppb)		19.7	Max Depth (cm)		72
Avg Interval (days)		7			Inflow P Load (mg/m2-yr)		533	Freq Depth <  5 cm		0.0%
Parameter Set:		none			Outflow FWM  Conc (ppb)		22.0	Load Reduction		-13%
K  (m/yr)		14.25	Sm (mg/m2)	0	Outflow C with Bypass		22.0	Time Freq Conc > 10 ppb		98%
C1 (ppb)		22.0	Sp (mg/m2)	0	95th Percentile (ppb)		47.3	Vol Freq Conc > 10 ppb		100%
C0  (ppb)		4.0	Qout Intercept	0.0	Outflow Geo. Mean (ppb)		21.5	Storage Turnover (1/yr)		1.4

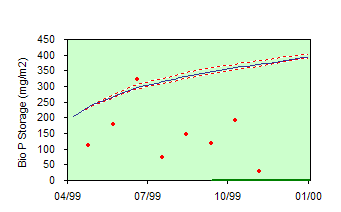

Zx  (cm)		0	Qout Exponent	0.0	Outflow GM,  Q>0 (ppb)		21.7	Mean Stored P (mg/m2)		324

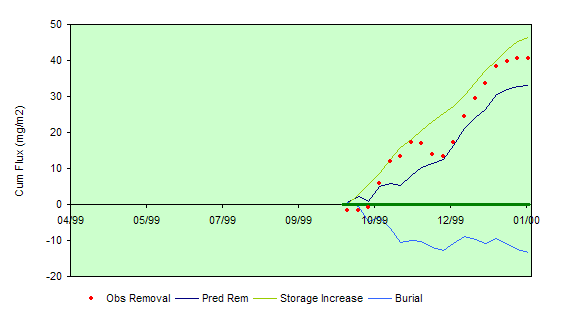

Wtr Bal Error		0.0%			Knet-Plug Flow (m/yr)		11.0	Storage Inc/Net Removal		74%
Mass B Error		-0.1%			Knet-NCSTR (m/yr)		12.8	Outfl. Seepage (cm/d/cm)		0
Ki	E/m2-d	0	0	Model 2	Mean Biomass (g/m2)		#N/A	Biomass Turnover (1/yr)		#N/A
Kb	1/d	0	0	"	Gross PP  (g/m2-d)		#N/A	Total Resp (g/m2-d)		#N/A
Kr	1/d/g/m2	0	0	"
Ka	1/d	0	0	"
Kc	ppb	0	0	"
Ke	1/d	0	0	"
Ku	mg/m2	0	0	"
Calibration  Statistics for Period:			10/01/99	thru	02/01/00	Mean	Mean
			Count	Observed	Predicted	Residual	Resid%	RSE%	R2
Mean Depth (cm)			18	70.2	70.1	0.0	0%	0%	97%
Flow (cm/day)			0	#N/A	#N/A	#N/A	#N/A	#N/A	#N/A
Flow-Wtd-Mean Conc (ppb)			18	15.8	16.6	-0.8	-5%
Geometric Mean Conc (ppb)			18	15.7	16.0	-0.3	-2%	22%	0%
Mean Conc (ppb)			18	16.1	16.1	-0.1	-1%	24%	0%
Outflow Load (mg/m2-d)			0	#N/A	#N/A	#N/A	#N/A	#N/A	#N/A
Pred Q x Conc (mg/m2-d)			18	1.23	1.29	-0.06	-5%	27%	66%

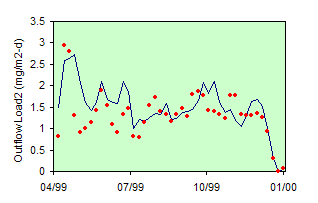

Obs Load2 = Predicted Flow x Obs Conc

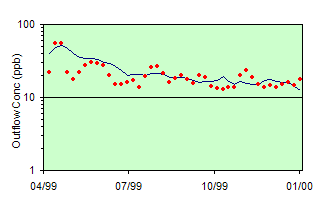

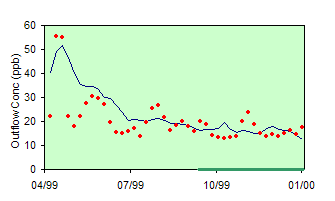

Green lines on x axis of concentration plots indicate model calibration period.
06/07/02
