DMSTA Simulation Results				Case:	PSTC_1_PE		Period:	02/16/99	to	03/01/00
Case:	PSTA Research, TMT = PSTC_1_4, UNIT = STC 13, Substrate = PE
Input Series		PSTC_1_4			Tanks in Series		2.6	Surface Area (km2)		0.0022
Simulation Period		02/16/99	thru	03/01/00	Mean Water Load  (cm/d)		5.2	Bypass Volume		0.0%
Output Period		02/16/99	thru	03/01/00	Max Water Load (cm/d)		5.6	Mean Depth (cm)		66
Startup Interval (days)		227	Iterations	1	Inflow Conc  (ppb)		23.7	Max Depth (cm)		77
Avg Interval (days)		7			Inflow P Load (mg/m2-yr)		292	Freq Depth <  5 cm		0.0%
Parameter Set:		none			Outflow FWM  Conc (ppb)		23.3	Load Reduction		-1%
K  (m/yr)		16.18	Sm (mg/m2)	0	Outflow C with Bypass		23.3	Time Freq Conc > 10 ppb		91%
C1 (ppb)		22.0	Sp (mg/m2)	0	95th Percentile (ppb)		41.9	Vol Freq Conc > 10 ppb		100%
C0  (ppb)		4.0	Qout Intercept	0.0	Outflow Geo. Mean (ppb)		20.1	Storage Turnover (1/yr)		1.5
Zx  (cm)		60	Qout Exponent	0.0	Outflow GM,  Q>0 (ppb)		21.2	Mean Stored P (mg/m2)		386
Wtr Bal Error		0.0%			Knet-Plug Flow (m/yr)		10.1	Storage Inc/Net Removal		70%
Mass B Error		-0.5%			Knet-NCSTR (m/yr)		11.3	Outfl. Seepage (cm/d/cm)		0
Ki	E/m2-d	0	0	Model 2	Mean Biomass (g/m2)		#N/A	Biomass Turnover (1/yr)		#N/A
Kb	1/d	0	0	"	Gross PP  (g/m2-d)		#N/A	Total Resp (g/m2-d)		#N/A
Kr	1/d/g/m2	0	0	"
Ka	1/d	0	0	"
Kc	ppb	0	0	"
Ke	1/d	0	0	"
Ku	mg/m2	0	0	"
Calibration  Statistics for Period:			10/01/99	thru	03/01/00	Mean	Mean
			Count	Observed	Predicted	Residual	Resid%	RSE%	R2
Mean Depth (cm)			22	65.8	65.5	0.3	1%	1%	97%
Flow (cm/day)			0	#N/A	#N/A	#N/A	#N/A	#N/A	#N/A
Flow-Wtd-Mean Conc (ppb)			16	15.2	14.9	0.3	2%
Geometric Mean Conc (ppb)			16	14.5	14.6	-0.1	-1%	19%	31%
Mean Conc (ppb)			16	14.9	14.7	0.2	2%	21%	35%
Outflow Load (mg/m2-d)			0	#N/A	#N/A	#N/A	#N/A	#N/A	#N/A
Pred Q x Conc (mg/m2-d)			16	0.83	0.81	0.02	2%	21%	71%

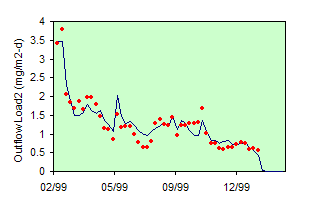

Obs Load2 = Predicted Flow x Obs Conc

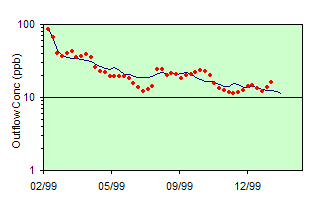

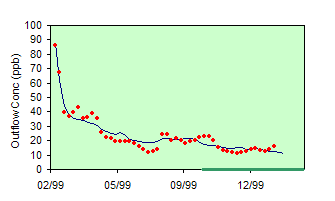

Green lines on x axis of concentration plots indicate model calibration period.
06/07/02
