DMSTA Simulation Results				Case:	PSTC_2_SR		Period:	02/16/99	to	03/31/00
Case:	PSTA Research, TMT = PSTC_2, UNIT = STC 8, Substrate = SR
Input Series		PSTC_2_5			Tanks in Series		3.5	Surface Area (km2)		0.0022
Simulation Period		02/16/99	thru	03/31/00	Mean Water Load  (cm/d)		5.8	Bypass Volume		0.0%
Output Period		02/16/99	thru	03/31/00	Max Water Load (cm/d)		5.9	Mean Depth (cm)		59
Startup Interval (days)		227	Iterations	1	Inflow Conc  (ppb)		22.9	Max Depth (cm)		70
Avg Interval (days)		7			Inflow P Load (mg/m2-yr)		389	Freq Depth <  5 cm		0.0%
Parameter Set:		none			Outflow FWM  Conc (ppb)		17.4	Load Reduction		21%
K  (m/yr)		22.63	Sm (mg/m2)	0	Outflow C with Bypass		17.4	Time Freq Conc > 10 ppb		100%
C1 (ppb)		22.0	Sp (mg/m2)	0	95th Percentile (ppb)		32.9	Vol Freq Conc > 10 ppb		100%
C0  (ppb)		4.0	Qout Intercept	0.0	Outflow Geo. Mean (ppb)		16.5	Storage Turnover (1/yr)		1.8
Zx  (cm)		0	Qout Exponent	0.0	Outflow GM,  Q>0 (ppb)		16.5	Mean Stored P (mg/m2)		398
Wtr Bal Error		0.0%			Knet-Plug Flow (m/yr)		15.3	Storage Inc/Net Removal		61%
Mass B Error		-0.3%			Knet-NCSTR (m/yr)		17.1	Outfl. Seepage (cm/d/cm)		0
Ki	E/m2-d	0	0	Model 2	Mean Biomass (g/m2)		#N/A	Biomass Turnover (1/yr)		#N/A
Kb	1/d	0	0	"	Gross PP  (g/m2-d)		#N/A	Total Resp (g/m2-d)		#N/A
Kr	1/d/g/m2	0	0	"
Ka	1/d	0	0	"
Kc	ppb	0	0	"
Ke	1/d	0	0	"
Ku	mg/m2	0	0	"
Calibration  Statistics for Period:			10/01/99	thru	03/31/00	Mean	Mean
			Count	Observed	Predicted	Residual	Resid%	RSE%	R2
Mean Depth (cm)			26	54.0	54.1	0.0	0%	0%	100%
Flow (cm/day)			0	#N/A	#N/A	#N/A	#N/A	#N/A	#N/A
Flow-Wtd-Mean Conc (ppb)			26	12.4	12.3	0.2	1%
Geometric Mean Conc (ppb)			26	12.1	12.2	0.0	0%	11%	48%
Mean Conc (ppb)			26	12.3	12.2	0.1	0%	11%	49%
Outflow Load (mg/m2-d)			0	#N/A	#N/A	#N/A	#N/A	#N/A	#N/A
Pred Q x Conc (mg/m2-d)			26	0.70	0.69	0.01	1%	11%	86%

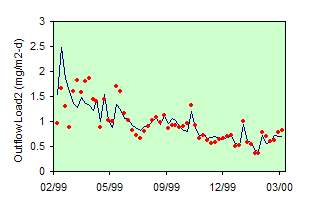

Obs Load2 = Predicted Flow x Obs Conc

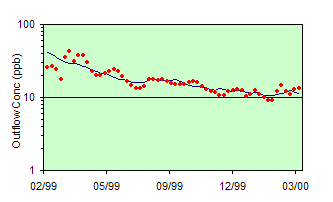

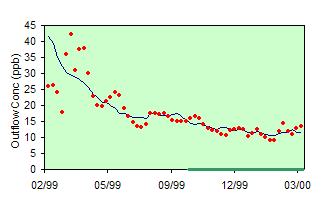

Green lines on x axis of concentration plots indicate model calibration period.
06/07/02
