DMSTA Simulation Results Case: PSTC_5_SR Period: 04/01/00 to 03/31/02
Case: PSTA, TMT = PSTC_5, UNIT = STC 8, Substrate = SR; Prototype Dataset for PSTA
Input Series PSTC_2_5 Tanks in Series 3.5 Surface Area (km2) 0.0022
Simulation Period 02/16/99 thru 03/31/02 Mean Water Load  (cm/d) 5.9 Bypass Volume 0.0%
Output Period 04/01/00 thru 03/31/02 Max Water Load (cm/d) 5.8 Mean Depth (cm) 30
Startup Interval (days) 410 Iterations 1 Inflow Conc  (ppb) 27.7 Max Depth (cm) 42
Avg Interval (days) 7 Inflow P Load (mg/m2-yr) 447 Freq Depth <  5 cm 0.0%
Parameter Set:   none Outflow FWM  Conc (ppb) 12.0 Load Reduction 56%
K  (m/yr) 24.21 Sm (mg/m2)  0 Outflow C with Bypass 12.0 Time Freq Conc > 10 ppb 100%
C1 (ppb) 22.0 Sp (mg/m2) 0 95th Percentile (ppb) 13.9 Vol Freq Conc > 10 ppb 100%
C0  (ppb) 4.0 Qout Intercept 0.0 Outflow Geo. Mean (ppb) 11.9 Storage Turnover (1/yr) 1.8
Zx  (cm) 0 Qout Exponent 0.0 Outflow GM,  Q>0 (ppb) 11.9 Mean Stored P (mg/m2) 576
Wtr Bal Error 0.0% Knet-Plug Flow (m/yr) 18.2 Storage Inc/Net Removal 29%
Mass B Error 0.0% Knet-NCSTR (m/yr) 20.8 Outfl. Seepage (cm/d/cm) 0
Calibration  Statistics for Period: 04/01/00 thru 03/27/01 Mean Mean
Count Observed Predicted Residual Resid% RSE% R2
Mean Depth (cm) 51 29.1 29.1 0.0 0% 0% 100%
Flow (cm/day) 0 #N/A #N/A #N/A #N/A #N/A #N/A
Flow-Wtd-Mean Conc (ppb) 51 11.6 11.2 0.4 4%
Geometric Mean Conc (ppb) 51 11.2 11.2 0.0 0% 23% 10%
Mean Conc (ppb) 51 11.6 11.2 0.4 3% 26% 4%
Outflow Load (mg/m2-d) 0 #N/A #N/A #N/A #N/A #N/A #N/A
Pred Q x Conc (mg/m2-d) 51 0.64 0.62 0.02 4% 26% 36%

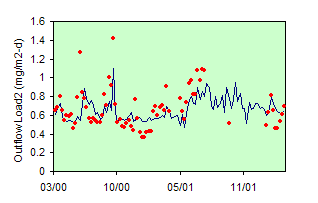

Obs Load2 = Predicted Flow x Obs Conc

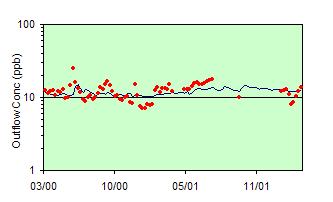

Green lines on x axis of concentration plots indicate model calibration period.
06/07/02
