DMSTA Simulation Results Case: Raceway_mo Period: 07/02/98 to 11/28/00
Case: SAV/PSTA Low-Velocity Raceway, South Test Site; Midpoint to Outflow
Input Series Raceway_mo Tanks in Series 6.0 Surface Area (km2) 0.0000

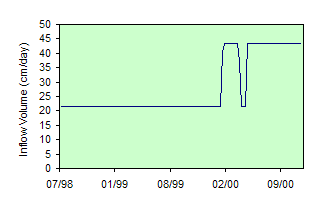

Simulation Period 07/02/98 thru 11/28/00 Mean Water Load  (cm/d) 28.8 Bypass Volume 0.0%

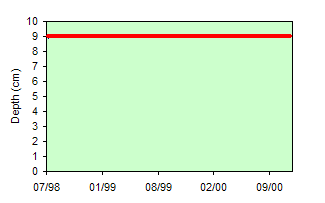

Output Period 07/02/98 thru 11/28/00 Max Water Load (cm/d) 43.3 Mean Depth (cm) 9
Startup Interval (days) 183 Iterations 1 Inflow Conc  (ppb) 15.3 Max Depth (cm) 9
Avg Interval (days) 7 Inflow P Load (mg/m2-yr) 1733 Freq Depth <  5 cm 0.0%
Parameter Set:   none Outflow FWM  Conc (ppb) 11.8 Load Reduction 23%
K  (m/yr) 41.85 Sm (mg/m2)  0 Outflow C with Bypass 11.8 Time Freq Conc > 10 ppb 55%
C1 (ppb) 22.0 Sp (mg/m2) 0 95th Percentile (ppb) 18.3 Vol Freq Conc > 10 ppb 65%
C0  (ppb) 4.0 Qout Intercept 0.0 Outflow Geo. Mean (ppb) 10.5 Storage Turnover (1/yr) 2.5

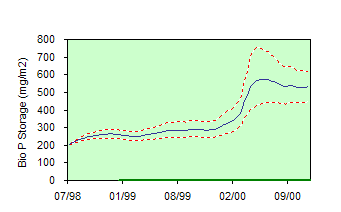

Zx  (cm) 0 Qout Exponent 0.0 Outflow GM,  Q>0 (ppb) 10.5 Mean Stored P (mg/m2) 349

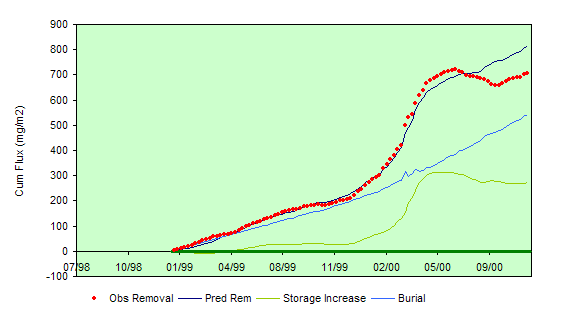

Wtr Bal Error 0.0% Knet-Plug Flow (m/yr) 29.3 Storage Inc/Net Removal 34%
Mass B Error 0.1% Knet-NCSTR (m/yr) 30.0 Outfl. Seepage (cm/d/cm) 0

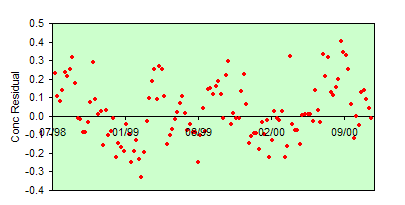

Calibration  Statistics for Period: 01/01/99 thru 11/28/00 Mean Mean
Count Observed Predicted Residual Resid% RSE% R2
Mean Depth (cm) 99 9.0 9.0 0.0 0% 0% 0%
Flow (cm/day) 0 #N/A #N/A #N/A #N/A #N/A #N/A
Flow-Wtd-Mean Conc (ppb) 99 12.7 12.2 0.5 4%
Geometric Mean Conc (ppb) 99 11.0 10.8 0.2 2% 16% 81%
Mean Conc (ppb) 99 11.7 11.4 0.4 3% 18% 76%

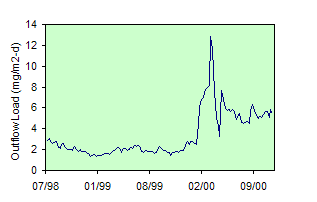

Outflow Load (mg/m2-d) 0 #N/A #N/A #N/A #N/A #N/A #N/A
Pred Q x Conc (mg/m2-d) 99 3.82 3.67 0.15 4% 21% 89%

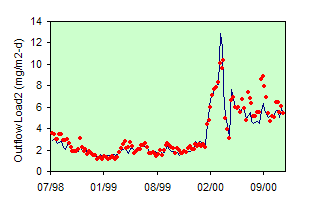

Obs Load2 = Predicted Flow x Obs Conc

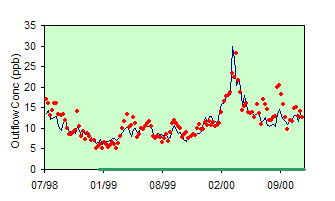

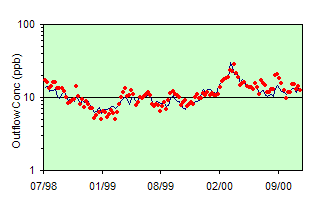

Green lines on x axis of concentration plots indicate model calibration period.
06/07/02
