DMSTA Simulation Results Case: SAV_Mod_Pulsed Period: 06/01/98 to 11/22/00
Case: SAV Mesocosm Moderate Hydraulic Load (~22 cm/d); steady then pulsed
Input Series SAV_moderate Tanks in Series 1.3 Surface Area (km2) 0.0000
Simulation Period 06/01/98 thru 11/22/00 Mean Water Load  (cm/d) 24.0 Bypass Volume 0.0%

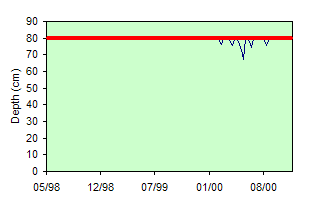

Output Period 06/01/98 thru 11/22/00 Max Water Load (cm/d) 92.0 Mean Depth (cm) 80

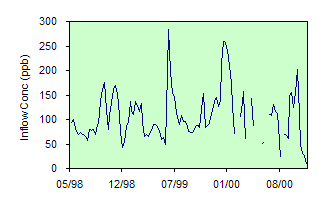

Startup Interval (days) 610 Iterations 1 Inflow Conc  (ppb) 105.4 Max Depth (cm) 80

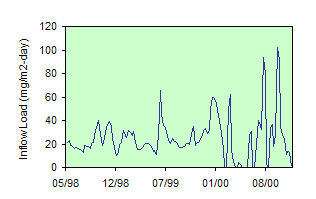

Avg Interval (days) 7 Inflow P Load (mg/m2-yr) 8880 Freq Depth <  5 cm 0.0%
Parameter Set:   none Outflow FWM  Conc (ppb) 36.1 Load Reduction 66%
K  (m/yr) 132.68 Sm (mg/m2)  0 Outflow C with Bypass 36.1 Time Freq Conc > 10 ppb 90%
C1 (ppb) 22.0 Sp (mg/m2) 0 95th Percentile (ppb) 47.4 Vol Freq Conc > 10 ppb 100%
C0  (ppb) 4.0 Qout Intercept 0.0 Outflow Geo. Mean (ppb) 33.8 Storage Turnover (1/yr) 28.7
Zx  (cm) 60 Qout Exponent 0.0 Outflow GM,  Q>0 (ppb) 33.7 Mean Stored P (mg/m2) 2178
Wtr Bal Error 0.0% Knet-Plug Flow (m/yr) 92.8 Storage Inc/Net Removal 14%
Mass B Error 0.0% Knet-NCSTR (m/yr) 144.5 Outfl. Seepage (cm/d/cm) 0
Calibration  Statistics for Period: 02/01/00 thru 11/22/00 Mean Mean
Count Observed Predicted Residual Resid% RSE% R2
Mean Depth (cm) 42 79.9 78.6 1.3 2% 4% #N/A
Flow (cm/day) 0 #N/A #N/A #N/A #N/A #N/A #N/A
Flow-Wtd-Mean Conc (ppb) 31 35.0 32.1 2.9 9%
Geometric Mean Conc (ppb) 31 41.3 41.6 -0.3 -1% 35% 0%
Mean Conc (ppb) 31 44.0 42.3 1.7 4% 34% 0%
Outflow Load (mg/m2-d) 0 #N/A #N/A #N/A #N/A #N/A #N/A
Pred Q x Conc (mg/m2-d) 42 11.87 10.90 0.97 9% 41% 88%

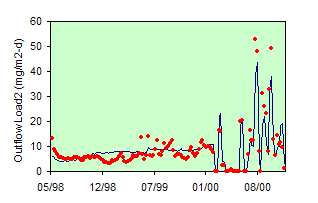

Obs Load2 = Predicted Flow x Obs Conc

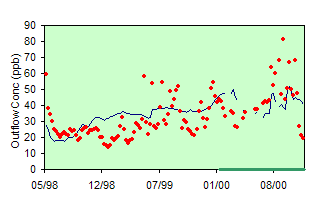

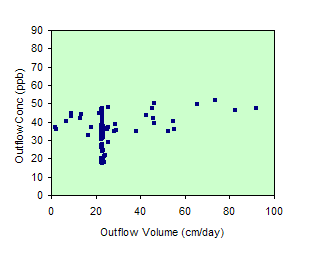

Green lines on x axis of concentration plots indicate model calibration period.
06/07/02
