DMSTA Simulation Results Case: SAV_S_A Period: 07/08/98 to 03/02/99
Case: SAV Mesocosm, ENR South Test Site, Depth = 65 cm, HLR = 20 cm/day, above limerock column
Input Series sav_south_a Tanks in Series 1.3 Surface Area (km2) 0.0000

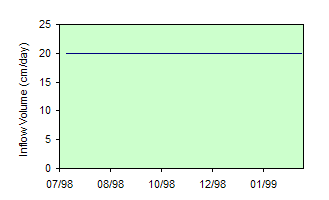

Simulation Period 07/08/98 thru 03/02/99 Mean Water Load  (cm/d) 20.4 Bypass Volume 0.0%
Output Period 07/08/98 thru 03/02/99 Max Water Load (cm/d) 20.0 Mean Depth (cm) 65

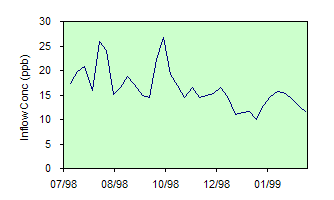

Startup Interval (days) 116 Iterations 1 Inflow Conc  (ppb) 16.3 Max Depth (cm) 65

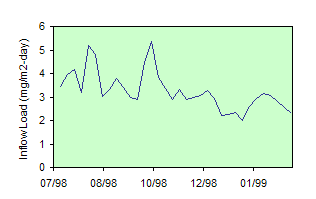

Avg Interval (days) 7 Inflow P Load (mg/m2-yr) 1005 Freq Depth <  5 cm 0.0%
Parameter Set:   none Outflow FWM  Conc (ppb) 12.6 Load Reduction 22%
K  (m/yr) 31.94 Sm (mg/m2)  0 Outflow C with Bypass 12.6 Time Freq Conc > 10 ppb 84%
C1 (ppb) 22.0 Sp (mg/m2) 0 95th Percentile (ppb) 18.8 Vol Freq Conc > 10 ppb 85%
C0  (ppb) 4.0 Qout Intercept 0.0 Outflow Geo. Mean (ppb) 12.3 Storage Turnover (1/yr) 1.9
Zx  (cm) 0 Qout Exponent 0.0 Outflow GM,  Q>0 (ppb) 12.3 Mean Stored P (mg/m2) 266

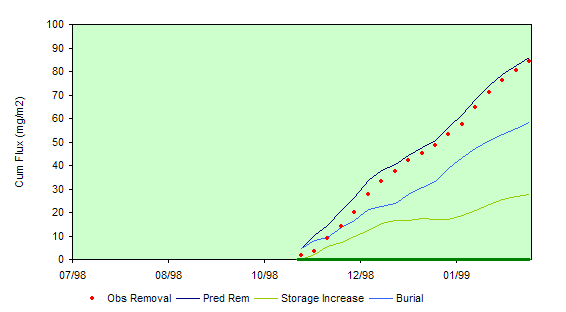

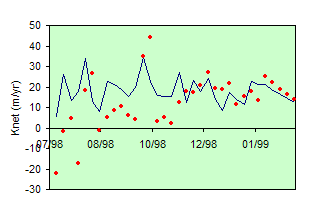

Wtr Bal Error 0.0% Knet-Plug Flow (m/yr) 20.5 Storage Inc/Net Removal 51%
Mass B Error -0.1% Knet-NCSTR (m/yr) 22.9 Outfl. Seepage (cm/d/cm) 0
Calibration  Statistics for Period: 11/01/98 thru 03/02/99 Mean Mean
Count Observed Predicted Residual Resid% RSE% R2

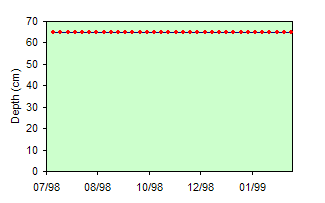

Mean Depth (cm) 18 65.0 65.0 0.0 0% 0% #N/A
Flow (cm/day) 0 #N/A #N/A #N/A #N/A #N/A #N/A
Flow-Wtd-Mean Conc (ppb) 18 10.9 10.8 0.1 1%
Geometric Mean Conc (ppb) 18 10.7 10.7 0.0 0% 9% 66%
Mean Conc (ppb) 18 10.9 10.8 0.1 1% 10% 60%

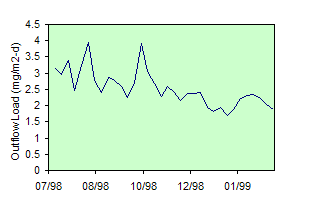

Outflow Load (mg/m2-d) 0 #N/A #N/A #N/A #N/A #N/A #N/A
Pred Q x Conc (mg/m2-d) 18 2.17 2.16 0.01 1% 10% 66%

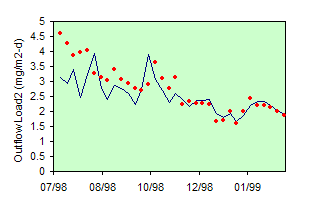

Obs Load2 = Predicted Flow x Obs Conc

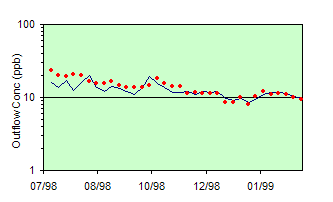

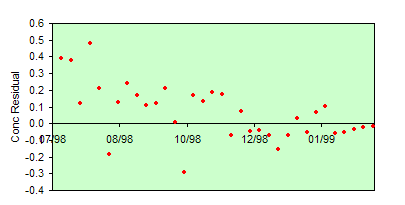

Green lines on x axis of concentration plots indicate model calibration period.
06/07/02
