DMSTA Simulation Results Case: SAV_Sand Period: 07/01/99 to 04/15/02
Case: SAV Substrate Experiments, ENR South Test Site,  Sand Substrate
Input Series sand Tanks in Series 3.0 Surface Area (km2) 0.0000

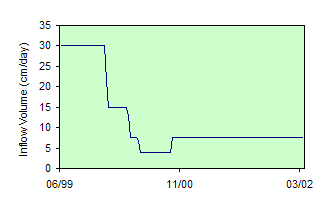

Simulation Period 07/01/99 thru 04/15/02 Mean Water Load  (cm/d) 12.3 Bypass Volume 0.0%

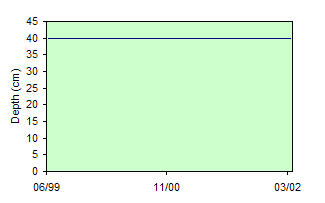

Output Period 07/01/99 thru 04/15/02 Max Water Load (cm/d) 30.0 Mean Depth (cm) 40

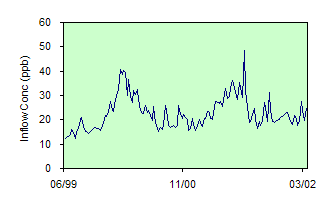

Startup Interval (days) 489 Iterations 1 Inflow Conc  (ppb) 21.2 Max Depth (cm) 40

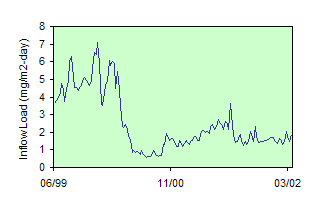

Avg Interval (days) 7 Inflow P Load (mg/m2-yr) 671 Freq Depth <  5 cm 0.0%
Parameter Set:   none Outflow FWM  Conc (ppb) 15.8 Load Reduction 26%
K  (m/yr) 37.88 Sm (mg/m2)  0 Outflow C with Bypass 15.8 Time Freq Conc > 10 ppb 95%
C1 (ppb) 22.0 Sp (mg/m2) 0 95th Percentile (ppb) 23.8 Vol Freq Conc > 10 ppb 99%
C0  (ppb) 4.0 Qout Intercept 0.0 Outflow Geo. Mean (ppb) 14.5 Storage Turnover (1/yr) 2.0

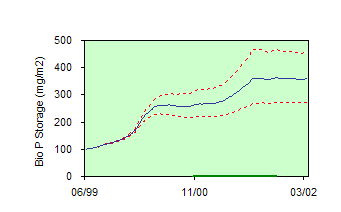

Zx  (cm) 60 Qout Exponent 0.0 Outflow GM,  Q>0 (ppb) 14.5 Mean Stored P (mg/m2) 259

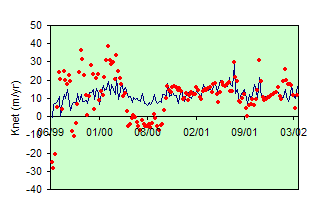

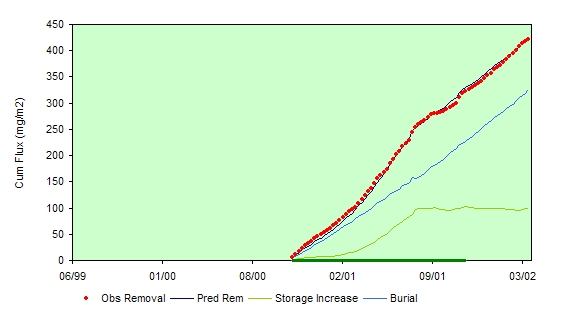

Wtr Bal Error 0.0% Knet-Plug Flow (m/yr) 14.5 Storage Inc/Net Removal 35%
Mass B Error 0.0% Knet-NCSTR (m/yr) 15.3 Outfl. Seepage (cm/d/cm) 0
Calibration  Statistics for Period: 11/01/00 thru 11/20/01 Mean Mean
Count Observed Predicted Residual Resid% RSE% R2
Mean Depth (cm) 0 #N/A #N/A #N/A #N/A #N/A #N/A
Flow (cm/day) 0 #N/A #N/A #N/A #N/A #N/A #N/A
Flow-Wtd-Mean Conc (ppb) 55 14.8 14.5 0.2 2%
Geometric Mean Conc (ppb) 55 14.4 14.3 0.1 0% 15% 46%
Mean Conc (ppb) 55 14.7 14.5 0.2 2% 15% 41%

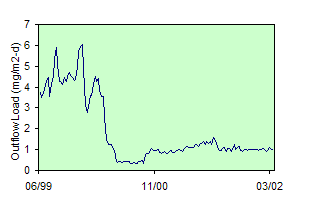

Outflow Load (mg/m2-d) 0 #N/A #N/A #N/A #N/A #N/A #N/A
Pred Q x Conc (mg/m2-d) 55 1.10 1.08 0.02 2% 16% 52%

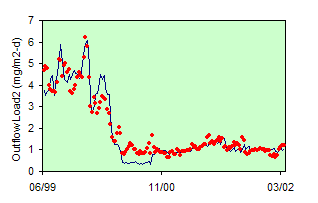

Obs Load2 = Predicted Flow x Obs Conc

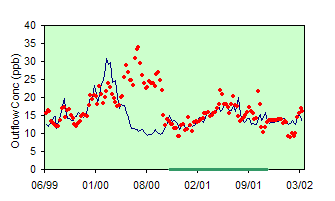

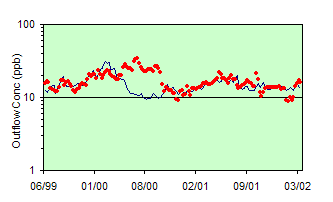

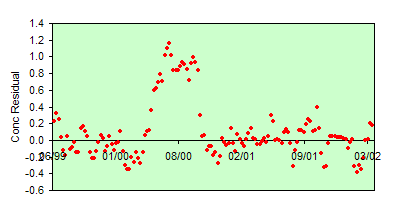

Green lines on x axis of concentration plots indicate model calibration period.
06/28/02
