DMSTA Simulation Results				Case:	SAV_STC4		Period:	06/15/00	to	09/30/01
Case:	SAV South Test Cell 4 - No Limerock Berm
Input Series		STC4_O			Tanks in Series		5.8	Surface Area (km2)		0.0025
Simulation Period		06/15/00	thru	09/30/01	Mean Water Load  (cm/d)		5.9	Bypass Volume		0.0%
Output Period		06/15/00	thru	09/30/01	Max Water Load (cm/d)		7.0	Mean Depth (cm)		26

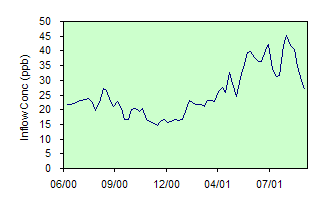

Startup Interval (days)		365	Iterations	1	Inflow Conc  (ppb)		25.8	Max Depth (cm)		32
Avg Interval (days)		7			Inflow P Load (mg/m2-yr)		781	Freq Depth <  5 cm		0.0%
Parameter Set:		none			Outflow FWM  Conc (ppb)		19.5	Load Reduction		23%
K  (m/yr)		35.56	Sm (mg/m2)	0	Outflow C with Bypass		19.5	Time Freq Conc > 10 ppb		99%
C1 (ppb)		22.0	Sp (mg/m2)	0	95th Percentile (ppb)		26.6	Vol Freq Conc > 10 ppb		100%
C0  (ppb)		4.0	Qout Intercept	0.0	Outflow Geo. Mean (ppb)		19.0	Storage Turnover (1/yr)		1.6
Zx  (cm)		60	Qout Exponent	0.0	Outflow GM,  Q>0 (ppb)		19.0	Mean Stored P (mg/m2)		131

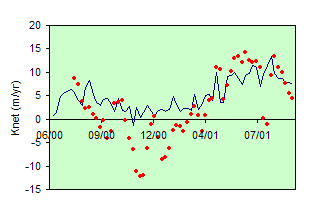

Wtr Bal Error		0.0%			Knet-Plug Flow (m/yr)		6.9	Storage Inc/Net Removal		49%
Mass B Error		-0.3%			Knet-NCSTR (m/yr)		7.2	Outfl. Seepage (cm/d/cm)		0
Ki	E/m2-d	0	0	Model 2	Mean Biomass (g/m2)		#N/A	Biomass Turnover (1/yr)		#N/A
Kb	1/d	0	0	"	Gross PP  (g/m2-d)		#N/A	Total Resp (g/m2-d)		#N/A
Kr	1/d/g/m2	0	0	"
Ka	1/d	0	0	"
Kc	ppb	0	0	"
Ke	1/d	0	0	"
Ku	mg/m2	0	0	"
Calibration  Statistics for Period:			06/15/01	thru	09/21/01	Mean	Mean
			Count	Observed	Predicted	Residual	Resid%	RSE%	R2

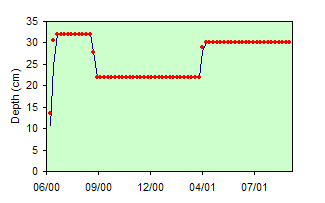

Mean Depth (cm)			14	30.0	30.0	0.0	0%	0%	#N/A
Flow (cm/day)			0	#N/A	#N/A	#N/A	#N/A	#N/A	#N/A
Flow-Wtd-Mean Conc (ppb)			14	24.4	24.0	0.3	1%
Geometric Mean Conc (ppb)			14	23.9	23.8	0.1	0%	21%	0%
Mean Conc (ppb)			14	24.4	24.0	0.3	1%	24%	0%

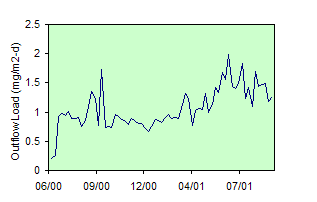

Outflow Load (mg/m2-d)			0	#N/A	#N/A	#N/A	#N/A	#N/A	#N/A
Pred Q x Conc (mg/m2-d)			14	1.50	1.48	0.02	1%	26%	0%
Obs Load2 = Predicted Flow x Obs Conc

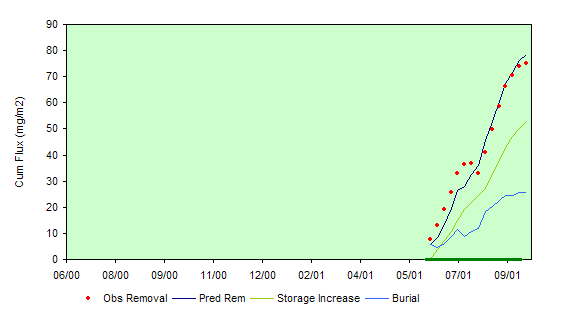

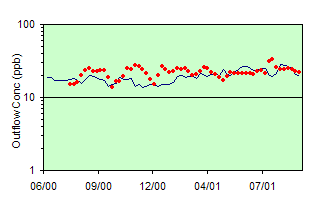

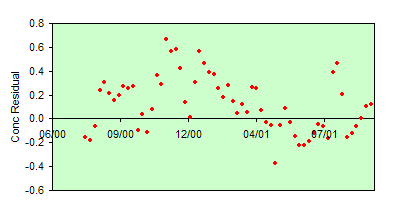

Green lines on x axis of concentration plots indicate model calibration period.
06/07/02
