DMSTA Simulation Results				Case:	STAOpt_5N_C		Period:	01/01/99	to	10/31/01
Case:	STA Optimization test cells 05 North (Control)
Input Series		STAOpt05N			Tanks in Series		6.0	Surface Area (km2)		0.0022
Simulation Period		08/01/98	thru	10/31/01	Mean Water Load  (cm/d)		3.4	Bypass Volume		0.0%

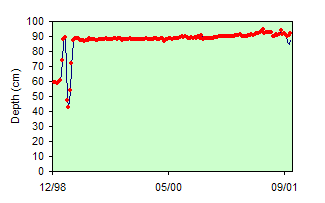

Output Period		01/01/99	thru	10/31/01	Max Water Load (cm/d)		5.7	Mean Depth (cm)		87
Startup Interval (days)		823	Iterations	1	Inflow Conc  (ppb)		71.1	Max Depth (cm)		96
Avg Interval (days)		7			Inflow P Load (mg/m2-yr)		721	Freq Depth <  5 cm		0.0%
Parameter Set:		none			Outflow FWM  Conc (ppb)		19.6	Load Reduction		73%
K  (m/yr)		12.84	Sm (mg/m2)	0	Outflow C with Bypass		19.6	Time Freq Conc > 10 ppb		97%
C1 (ppb)		22.0	Sp (mg/m2)	0	95th Percentile (ppb)		21.5	Vol Freq Conc > 10 ppb		100%
C0  (ppb)		4.0	Qout Intercept	0.0	Outflow Geo. Mean (ppb)		18.9	Storage Turnover (1/yr)		2.2

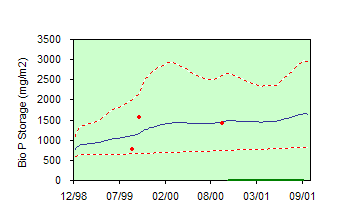

Zx  (cm)		60	Qout Exponent	0.0	Outflow GM,  Q>0 (ppb)		19.0	Mean Stored P (mg/m2)		1324

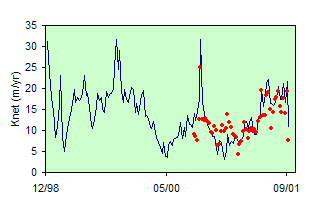

Wtr Bal Error		0.0%			Knet-Plug Flow (m/yr)		14.8	Storage Inc/Net Removal		50%
Mass B Error		-0.1%			Knet-NCSTR (m/yr)		16.6	Outfl. Seepage (cm/d/cm)		0
Ki	E/m2-d	0	0	Model 2	Mean Biomass (g/m2)		#N/A	Biomass Turnover (1/yr)		#N/A
Kb	1/d	0	0	"	Gross PP  (g/m2-d)		#N/A	Total Resp (g/m2-d)		#N/A
Kr	1/d/g/m2	0	0	"
Ka	1/d	0	0	"
Kc	ppb	0	0	"
Ke	1/d	0	0	"
Ku	mg/m2	0	0	"
Calibration  Statistics for Period:			11/01/00	thru	09/30/01	Mean	Mean
			Count	Observed	Predicted	Residual	Resid%	RSE%	R2
Mean Depth (cm)			48	90.8	90.8	0.0	0%	0%	99%
Flow (cm/day)			0	#N/A	#N/A	#N/A	#N/A	#N/A	#N/A
Flow-Wtd-Mean Conc (ppb)			48	20.9	19.9	0.9	5%
Geometric Mean Conc (ppb)			48	19.6	19.8	-0.2	-1%	26%	15%
Mean Conc (ppb)			48	20.4	19.8	0.6	3%	24%	15%

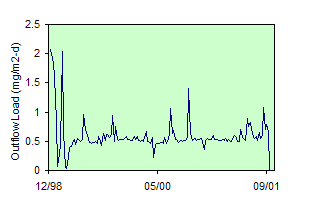

Outflow Load (mg/m2-d)			0	#N/A	#N/A	#N/A	#N/A	#N/A	#N/A
Pred Q x Conc (mg/m2-d)			48	0.61	0.58	0.03	5%	25%	60%

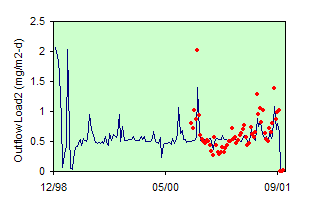

Obs Load2 = Predicted Flow x Obs Conc

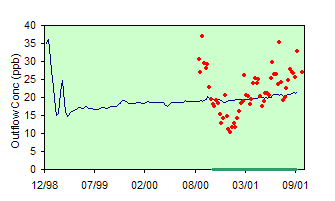

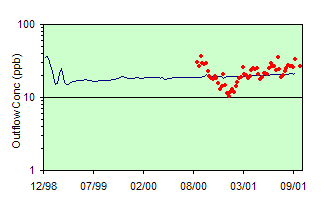

Green lines on x axis of concentration plots indicate model calibration period.
06/07/02
