DMSTA Simulation Results				Case:	WCA2A_8		Period:	10/01/78	to	10/31/99
Case:	WCA2A South of S10's - First 8 Km; Calibrated to 1993-1999 Data

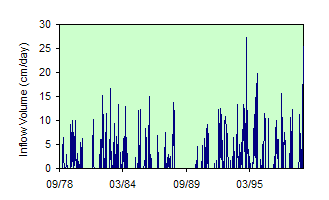

Input Series		S10ACD_8			Tanks in Series		6.0	Surface Area (km2)		78.8000
Simulation Period		10/01/78	thru	10/31/99	Mean Water Load  (cm/d)		2.0	Bypass Volume		0.0%
Output Period		10/01/78	thru	10/31/99	Max Water Load (cm/d)		34.5	Mean Depth (cm)		43

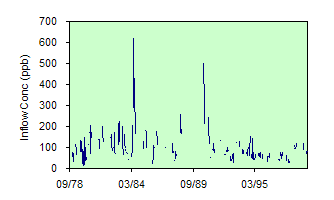

Startup Interval (days)		4840	Iterations	1	Inflow Conc  (ppb)		97.1	Max Depth (cm)		130
Avg Interval (days)		7			Inflow P Load (mg/m2-yr)		672	Freq Depth <  5 cm		7.3%
Parameter Set:		none			Outflow FWM  Conc (ppb)		19.8	Load Reduction		80%
K  (m/yr)		30.00	Sm (mg/m2)	0	Outflow C with Bypass		19.8	Time Freq Conc > 10 ppb		52%
C1 (ppb)		22.0	Sp (mg/m2)	0	95th Percentile (ppb)		27.1	Vol Freq Conc > 10 ppb		89%
C0  (ppb)		4.0	Qout Intercept	1.5	Outflow Geo. Mean (ppb)		18.1	Storage Turnover (1/yr)		4.2

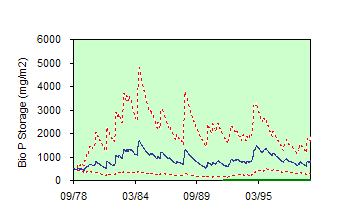

Zx  (cm)		60	Qout Exponent	4.0	Outflow GM,  Q>0 (ppb)		13.3	Mean Stored P (mg/m2)		894
Wtr Bal Error		0.0%			Knet-Plug Flow (m/yr)		11.1	Storage Inc/Net Removal		4%
Mass B Error		0.7%			Knet-NCSTR (m/yr)		12.8	Outfl. Seepage (cm/d/cm)		0
Ki	E/m2-d	0	0	Model 2	Mean Biomass (g/m2)		#N/A	Biomass Turnover (1/yr)		#N/A
Kb	1/d	0	0	"	Gross PP  (g/m2-d)		#N/A	Total Resp (g/m2-d)		#N/A
Kr	1/d/g/m2	0	0	"
Ka	1/d	0	0	"
Kc	ppb	0	0	"
Ke	1/d	0	0	"
Ku	mg/m2	0	0	"

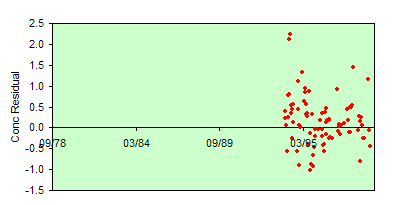

Calibration  Statistics for Period:			01/01/92	thru	10/31/99	Mean	Mean
			Count	Observed	Predicted	Residual	Resid%	RSE%	R2

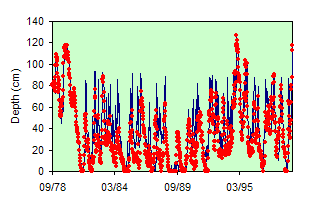

Mean Depth (cm)			409	41.0	49.4	-8.4	-17%	35%	73%
Flow (cm/day)			0	#N/A	#N/A	#N/A	#N/A	#N/A	#N/A
Flow-Wtd-Mean Conc (ppb)			85	12.9	17.3	-4.4	-25%
Geometric Mean Conc (ppb)			85	15.9	13.5	2.4	18%	61%	0%
Mean Conc (ppb)			85	18.9	14.5	4.5	31%	92%	0%

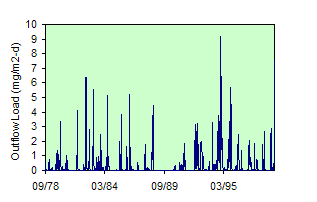

Outflow Load (mg/m2-d)			0	#N/A	#N/A	#N/A	#N/A	#N/A	#N/A
Pred Q x Conc (mg/m2-d)			100	0.44	0.59	-0.15	-25%	174%	2%

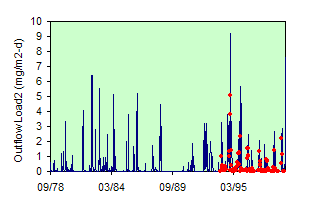

Obs Load2 = Predicted Flow x Obs Conc

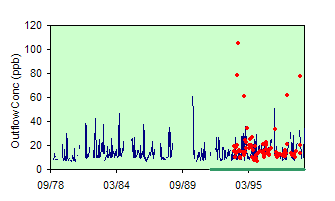

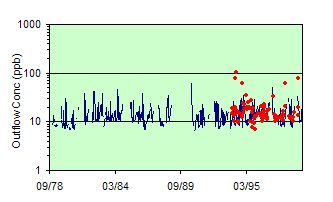

Green lines on x axis of concentration plots indicate model calibration period.
06/07/02
