DMSTA Simulation Results				Case:	WL_E2_SAV		Period:	11/01/01	to	11/30/02
Case:	Wellington E2 - SAV
Input Series		e2_sav			Tanks in Series		3.0	Surface Area (km2)		0.0008
Simulation Period		08/01/01	thru	11/30/02	Mean Water Load  (cm/d)		11.7	Bypass Volume		0.0%
Output Period		11/01/01	thru	11/30/02	Max Water Load (cm/d)		19.7	Mean Depth (cm)		80
Startup Interval (days)		273	Iterations	1	Inflow Conc  (ppb)		259.4	Max Depth (cm)		80

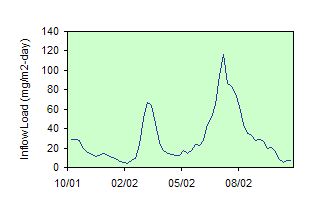

Avg Interval (days)		7			Inflow P Load (mg/m2-yr)		13247	Freq Depth <  5 cm		0.0%
Parameter Set:		none			Outflow FWM  Conc (ppb)		129.5	Load Reduction		53%
K  (m/yr)		4.07	Sm (mg/m2)	0	Outflow C with Bypass		129.5	Time Freq Conc > 10 ppb		100%
C1 (ppb)		22.0	Sp (mg/m2)	0	95th Percentile (ppb)		246.7	Vol Freq Conc > 10 ppb		100%
C0  (ppb)		4.0	Qout Intercept	0.5	Outflow Geo. Mean (ppb)		111.5	Storage Turnover (1/yr)		3.2

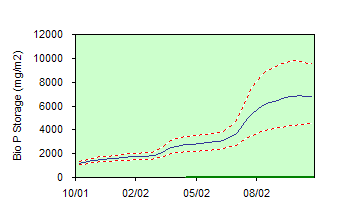

Zx  (cm)		60	Qout Exponent	4.0	Outflow GM,  Q>0 (ppb)		111.5	Mean Stored P (mg/m2)		3500

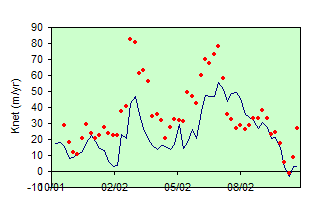

Wtr Bal Error		0.0%			Knet-Plug Flow (m/yr)		29.2	Storage Inc/Net Removal		95%
Mass B Error		0.0%			Knet-NCSTR (m/yr)		33.0	Outfl. Seepage (cm/d/cm)		0.008
Ki	E/m2-d	0	0	Model 2	Mean Biomass (g/m2)		#N/A	Biomass Turnover (1/yr)		#N/A
Kb	1/d	0	0	"	Gross PP  (g/m2-d)		#N/A	Total Resp (g/m2-d)		#N/A
Kr	1/d/g/m2	0	0	"
Ka	1/d	0	0	"
Kc	ppb	0	0	"
Ke	1/d	0	0	"
Ku	mg/m2	0	0	"
Calibration  Statistics for Period:			05/01/02	thru	11/30/02	Mean	Mean
			Count	Observed	Predicted	Residual	Resid%	RSE%	R2

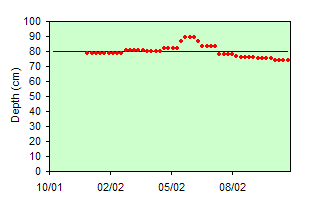

Mean Depth (cm)			31	79.7	80.1	-0.4	0%	6%	0%
Flow (cm/day)			31	14.59	11.32	3.28	29%	29%	0%

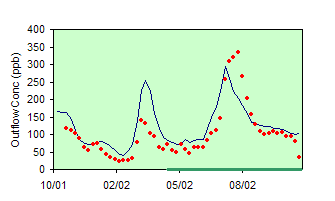

Flow-Wtd-Mean Conc (ppb)			31	136.8	134.7	2.0	1%
Geometric Mean Conc (ppb)			31	103.3	122.9	-19.6	-16%	37%	64%
Mean Conc (ppb)			31	125.3	132.8	-7.5	-6%	37%	70%

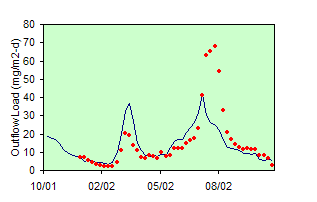

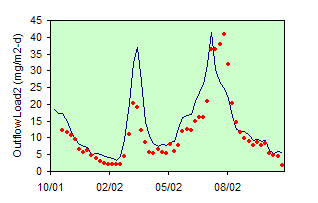

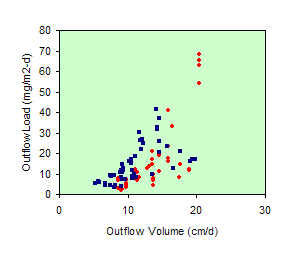

Outflow Load (mg/m2-d)			31	19.96	15.25	4.71	31%	72%	39%
Pred Q x Conc (mg/m2-d)			31	14.24	15.25	-1.00	-7%	41%	72%

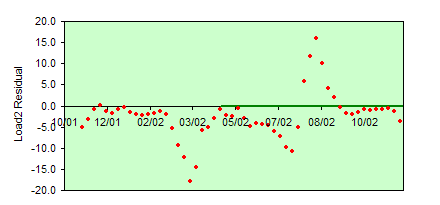

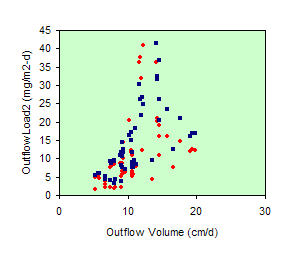

Obs Load2 = Predicted Flow x Obs Conc

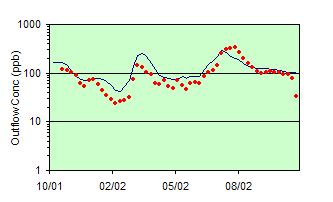

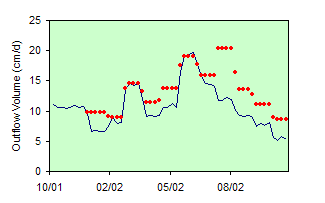

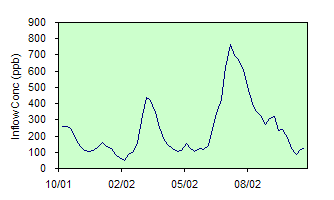

Green lines on x axis of concentration plots indicate model calibration period.
07/05/03
