DMSTA Simulation Results				Case:	WL_E3_PSTA		Period:	11/01/01	to	11/30/02
Case:	Wellington E3 - PSTA
Input Series		e3_psta			Tanks in Series		3.0	Surface Area (km2)		0.0008

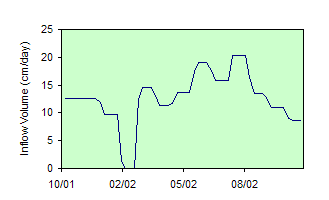

Simulation Period		08/01/01	thru	11/30/02	Mean Water Load  (cm/d)		12.9	Bypass Volume		0.0%
Output Period		11/01/01	thru	11/30/02	Max Water Load (cm/d)		20.3	Mean Depth (cm)		17

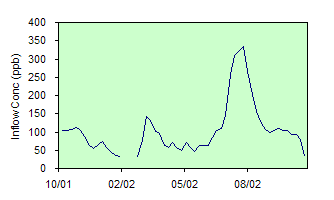

Startup Interval (days)		273	Iterations	1	Inflow Conc  (ppb)		117.0	Max Depth (cm)		22

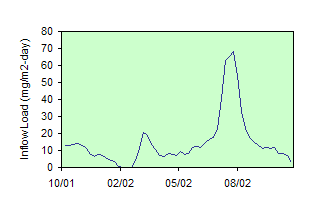

Avg Interval (days)		7			Inflow P Load (mg/m2-yr)		7289	Freq Depth <  5 cm		0.0%
Parameter Set:		none			Outflow FWM  Conc (ppb)		49.3	Load Reduction		73%
K  (m/yr)		13.81	Sm (mg/m2)	0	Outflow C with Bypass		49.3	Time Freq Conc > 10 ppb		100%
C1 (ppb)		22.0	Sp (mg/m2)	0	95th Percentile (ppb)		88.3	Vol Freq Conc > 10 ppb		100%
C0  (ppb)		4.0	Qout Intercept	4.0	Outflow Geo. Mean (ppb)		40.9	Storage Turnover (1/yr)		4.5

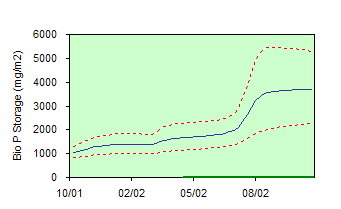

Zx  (cm)		0	Qout Exponent	4.0	Outflow GM,  Q>0 (ppb)		40.9	Mean Stored P (mg/m2)		2112

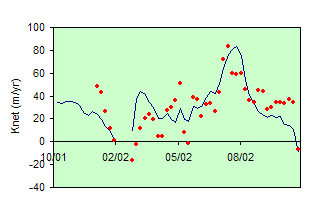

Wtr Bal Error		0.0%			Knet-Plug Flow (m/yr)		43.0	Storage Inc/Net Removal		82%
Mass B Error		0.0%			Knet-NCSTR (m/yr)		49.9	Outfl. Seepage (cm/d/cm)		0.1
Ki	E/m2-d	0	0	Model 2	Mean Biomass (g/m2)		#N/A	Biomass Turnover (1/yr)		#N/A
Kb	1/d	0	0	"	Gross PP  (g/m2-d)		#N/A	Total Resp (g/m2-d)		#N/A
Kr	1/d/g/m2	0	0	"
Ka	1/d	0	0	"
Kc	ppb	0	0	"
Ke	1/d	0	0	"
Ku	mg/m2	0	0	"
Calibration  Statistics for Period:			05/01/02	thru	11/30/02	Mean	Mean
			Count	Observed	Predicted	Residual	Resid%	RSE%	R2

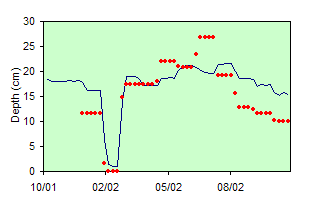

Mean Depth (cm)			31	17.7	18.9	-1.2	-6%	27%	31%

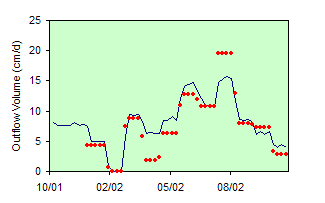

Flow (cm/day)			31	9.53	9.76	-0.23	-2%	23%	82%
Flow-Wtd-Mean Conc (ppb)			31	63.4	55.5	7.9	14%
Geometric Mean Conc (ppb)			31	43.7	50.3	-6.6	-13%	41%	41%
Mean Conc (ppb)			31	50.7	53.0	-2.2	-4%	36%	63%

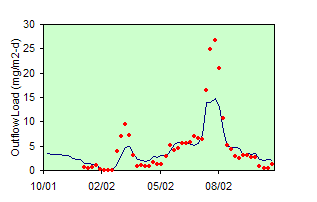

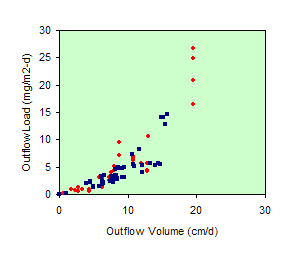

Outflow Load (mg/m2-d)			31	6.04	5.42	0.62	12%	59%	74%
Pred Q x Conc (mg/m2-d)			31	5.66	5.42	0.24	4%	36%	85%

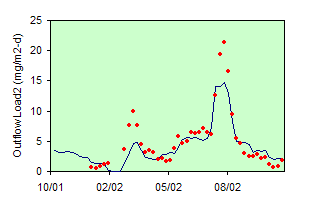

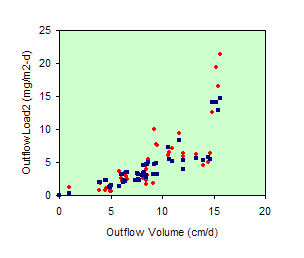

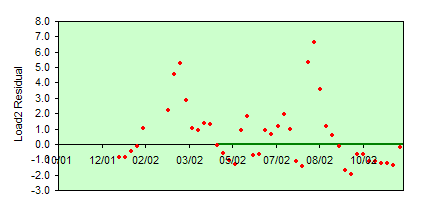

Obs Load2 = Predicted Flow x Obs Conc

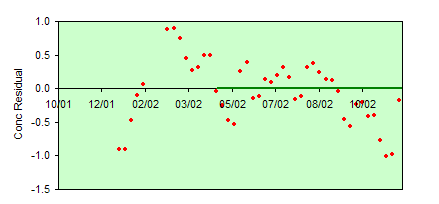

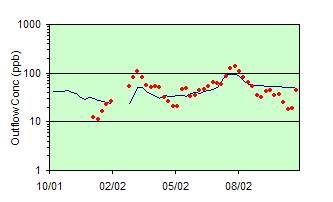

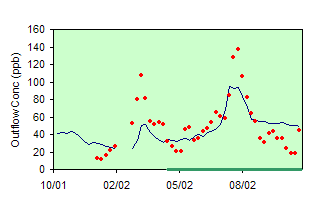

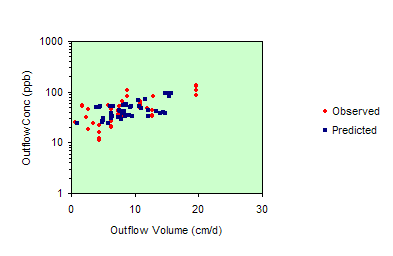

Green lines on x axis of concentration plots indicate model calibration period.
07/05/03
