DMSTA Simulation Results Case: NEWS_P Period: 02/16/99 to 03/27/01
Case: South Test Cell-8   -  Generalized Calibration for Non-Emergent Wetland System (NEWS), SAV --- > Periphyton
Input Series PSTC_2_5 Tanks in Series 3.5 Surface Area (km2) 0.0022
Simulation Period 02/16/99 thru 03/27/01 Mean Water Load  (cm/d) 5.9 Bypass Volume 0.0%

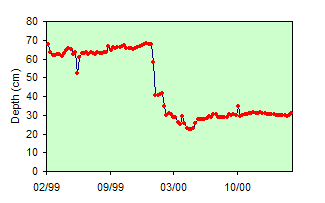

Output Period 02/16/99 thru 03/27/01 Max Water Load (cm/d) 5.9 Mean Depth (cm) 45

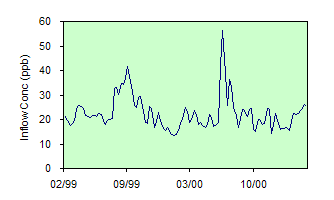

Startup Interval (days) 410 Iterations 1 Inflow Conc  (ppb) 22.6 Max Depth (cm) 71

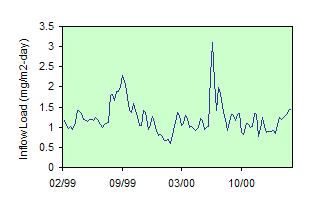

Avg Interval (days) 7 Inflow P Load (mg/m2-yr) 448 Freq Depth <  5 cm 0.0%
Parameter Set:   none Outflow FWM  Conc (ppb) 14.4 Load Reduction 35%
K  (m/yr) 128.70 Sm (mg/m2)  400 Outflow C with Bypass 14.4 Time Freq Conc > 10 ppb 90%
C1 (ppb) 22.0 Sp (mg/m2) 80 95th Percentile (ppb) 28.1 Vol Freq Conc > 10 ppb 91%
C0  (ppb) 12.0 Qout Intercept 0.0 Outflow Geo. Mean (ppb) 13.7 Storage Turnover (1/yr) 1.5

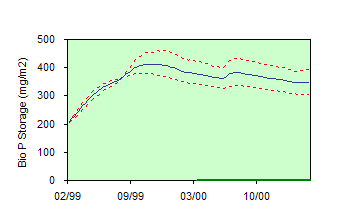

Zx  (cm) 60 Qout Exponent 0.0 Outflow GM,  Q>0 (ppb) 13.6 Mean Stored P (mg/m2) 360

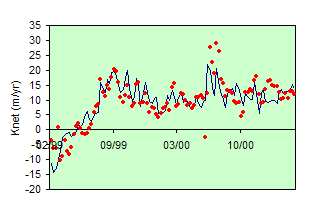

Wtr Bal Error 0.0% Knet-Plug Flow (m/yr) 15.7 Storage Inc/Net Removal 20%
Mass B Error -0.1% Knet-NCSTR (m/yr) 17.6 Outfl. Seepage (cm/d/cm) 0
Calibration  Statistics for Period: 04/01/00 thru 03/27/01 Mean Mean
Count Observed Predicted Residual Resid% RSE% R2
Mean Depth (cm) 52 29.0 29.0 0.0 0% 0% 100%
Flow (cm/day) 0 #N/A #N/A #N/A #N/A #N/A #N/A
Flow-Wtd-Mean Conc (ppb) 52 11.7 12.1 -0.4 -4%
Geometric Mean Conc (ppb) 52 11.2 11.9 -0.7 -6% 24% 0%
Mean Conc (ppb) 52 11.6 12.1 -0.5 -4% 27% 0%

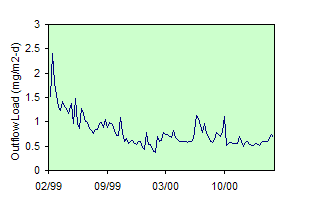

Outflow Load (mg/m2-d) 0 #N/A #N/A #N/A #N/A #N/A #N/A
Pred Q x Conc (mg/m2-d) 52 0.64 0.66 -0.02 -4% 27% 21%

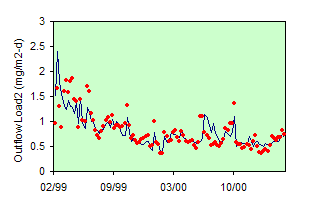

Obs Load2 = Predicted Flow x Obs Conc

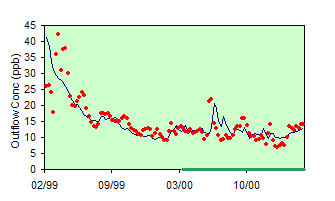

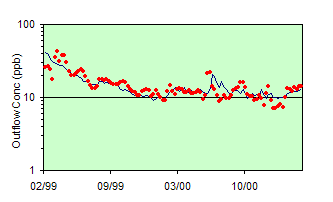

Green lines on x axis of concentration plots indicate model calibration period.
06/07/02
