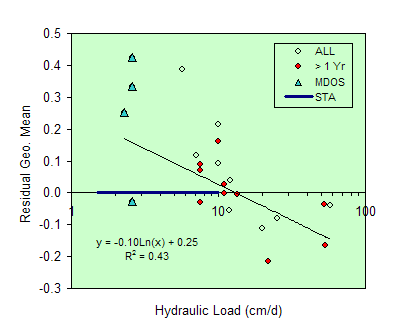

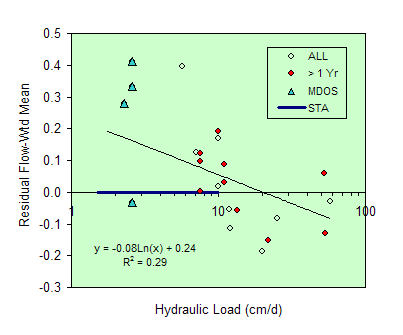

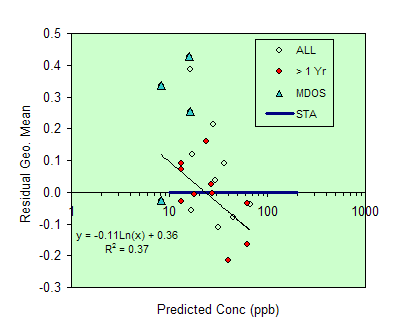

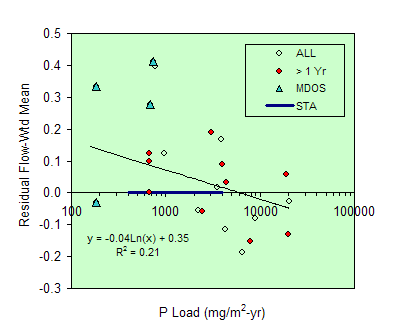

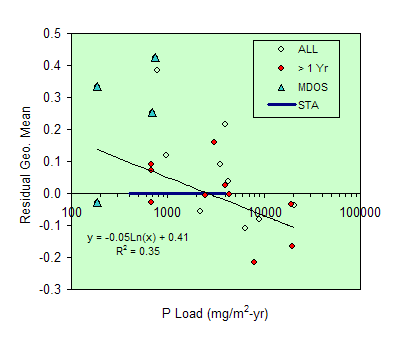

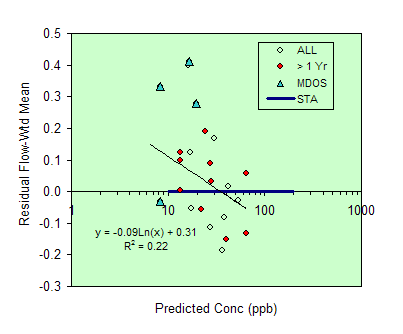

Model Residuals for SAV Datasets Correlated with Predicted Concentration, Hydraulic Load, & P Load

Parameter Set:

NEWS

Residual = ln ( Observed / Predicted Outflow Concentration );  Value of 0.5 indicates a 50% over-prediction of outflow concentration

Regressions are for Datasets > 1 Year in duration, excluding MDOS

N =

10

MDOS = Macrophyte Dryout Study

Typical design range for optimized STA, EAA basins, <= 3 cells in series; lower range ~ polishing cells; upper range ~inflow cells

6/7/2002
