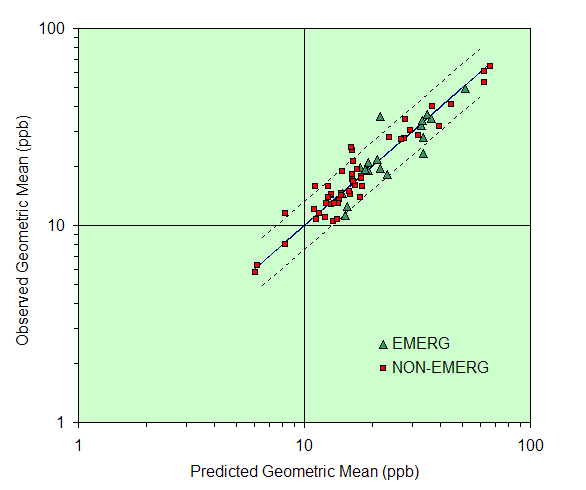

| Observed & Predicted Outflow Concentrations | ||||||||||
| Calibrations: | Emergent / NonEmergent | All Datasets | ||||||||
|
||||||||||
|
||||||||||
| Model Calibrated to Prototypes (Boney Marsh, Cell4, STC-8), Then Applied to Other Datasets | ||||||||||
| EMERG = | Emergent Communities | |||||||||
| NON-EMERG = | SAV or PSTA Communities | |||||||||
| Dashed Lines = 90% Confidence Interval | ||||||||||
| Goodness of Fit | Flow-Wtd | Geometric | ||||||||
| R-Squared | 91% | 89% | ||||||||
| Resid Std Error | 15% | 17% | ||||||||
| 06/07/02 | ||||||||||
