DMSTA Simulation Results Case: STA2_C2 Period: 11/01/00 to 12/31/02
Case: STA2 - Cell 2
Input Series cell2 Tanks in Series 3.0 Surface Area (km2) 8.9886
Simulation Period 11/01/00 thru 12/31/02 Mean Water Load  (cm/d) 3.8 Bypass Volume 0.0%
Output Period 11/01/00 thru 12/31/02 Max Water Load (cm/d) 47.1 Mean Depth (cm) 33

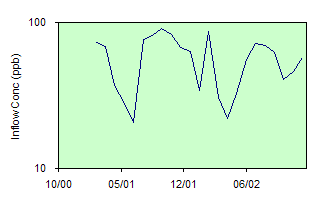

Startup Interval (days) 304 Iterations 1 Inflow Conc  (ppb) 71.0 Max Depth (cm) 116
Avg Interval (days) 30 Inflow P Load (mg/m2-yr) 1151 Freq Depth <  5 cm 0.0%
Parameter Set:   none Outflow FWM  Conc (ppb) 21.4 Load Reduction 78%
K  (m/yr) 35.71 Sm (mg/m2)  0 Outflow C with Bypass 21.4 Time Freq Conc > 10 ppb 100%
C1 (ppb) 22.0 Sp (mg/m2) 0 95th Percentile (ppb) 509.7 Vol Freq Conc > 10 ppb 100%
C0  (ppb) 2.0 Qout Intercept 1.2 Outflow Geo. Mean (ppb) 40.0 Storage Turnover (1/yr) 6.8

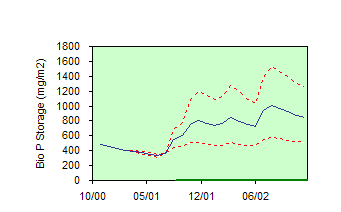

Zx  (cm) 60 Qout Exponent 4.0 Outflow GM,  Q>0 (ppb) 40.0 Mean Stored P (mg/m2) 666
Wtr Bal Error 0.0% Knet-Plug Flow (m/yr) 20.2 Storage Inc/Net Removal 24%
Mass B Error 0.5% Knet-NCSTR (m/yr) 25.0 Outfl. Seepage (cm/d/cm) 0.03
Calibration  Statistics for Period: 09/01/01 thru 12/31/02 Mean Mean
Count Observed Predicted Residual Resid% RSE% R2

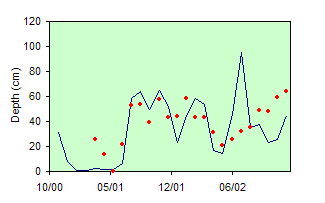

Mean Depth (cm) 16 43.3 42.9 0.4 1% 54% 0%
Flow (cm/day) 16 3.22 3.24 -0.01 0% 41% 91%
Flow-Wtd-Mean Conc (ppb) 15 18.6 20.4 -1.8 -9%
Geometric Mean Conc (ppb) 15 16.9 15.4 1.5 10% 26% 0%
Mean Conc (ppb) 15 17.1 17.0 0.1 1% 35% 0%

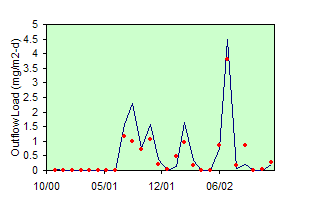

Outflow Load (mg/m2-d) 16 0.60 0.66 -0.06 -9% 59% 86%
Pred Q x Conc (mg/m2-d) 15 0.96 0.70 0.26 37% 53% 83%

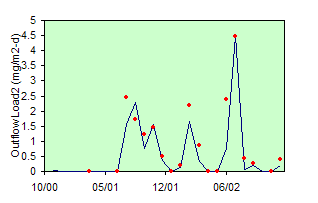

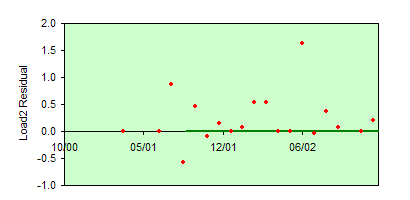

Obs Load2 = Predicted Flow x Obs Conc

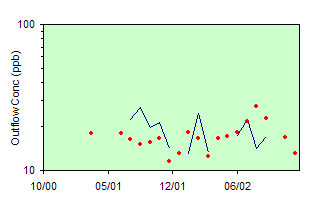

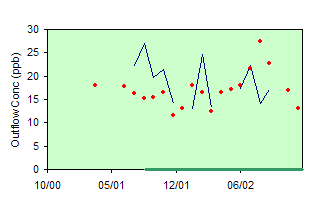

Green lines on x axis of concentration plots indicate model calibration period.
05/04/03
