DMSTA Simulation Results |
|
Case: |
STA5_C1 |
|
Period: |
06/01/99 |
to |
12/31/02 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Case: |
STA5 Cells 1A & 1B, North,
Managed for SAV |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Input Series |
STA5_Cell1 |
|
|
Tanks in Series |
6.0 |
Surface Area (km2) |
8.3200 |
|
|
|
|
|
|
|
|
Simulation Period |
06/01/99 |
thru |
12/31/02 |
Mean Water
Load (cm/d) |
2.9 |
Bypass Volume |
0.0% |
|
|
|
|
|
|
|
|
Output Period |
06/01/99 |
thru |
12/31/02 |
Max Water Load
(cm/d) |
13.1 |
Mean Depth (cm) |
51 |
|
|
|
|
|
|
|
|
Startup Interval (days) |
761 |
Iterations |
1 |
Inflow Conc (ppb) |
253.8 |
Max Depth (cm) |
85 |
|
|
|
|
|
|
|
|
Avg Interval (days) |
30 |
|
|
Inflow P Load
(mg/m2-yr) |
4039 |
Freq Depth
< 5 cm |
0.0% |
|
|
|
|
|
|
|
|
Parameter Set: |
none |
|
|
Outflow
FWM Conc (ppb) |
101.3 |
Load Reduction |
57% |
|
|
|
|
|
|
|
|
K (m/yr) |
|
2.07 |
Sm (mg/m2) |
0 |
Outflow C with Bypass |
101.3 |
Time Freq
Conc > 10 ppb |
100% |
|
|
|
|
|
|
|
|
C1 (ppb) |
|
22.0 |
Sp (mg/m2) |
0 |
95th Percentile
(ppb) |
162.0 |
Vol Freq Conc
> 10 ppb |
100% |
|
|
|
|
|
|
|
|
C0 (ppb) |
|
2.0 |
Qout Intercept |
1.5 |
Outflow Geo.
Mean (ppb) |
40.3 |
Storage Turnover (1/yr) |
2.0 |
|
|
|
|
|
|
|
|
Zx (cm) |
|
60 |
Qout Exponent |
4.0 |
Outflow
GM, Q>0 (ppb) |
40.3 |
Mean Stored P (mg/m2) |
1214 |
|
|
|
|
|
|
|
|
Wtr Bal Error |
0.0% |
|
|
Knet-Plug Flow
(m/yr) |
7.4 |
Storage Inc/Net
Removal |
95% |
|
|
|
|
|
|
|
|
Mass B Error |
0.4% |
|
|
Knet-NCSTR (m/yr) |
7.8 |
Outfl. Seepage
(cm/d/cm) |
0.01 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Ki |
E/m2-d |
0 |
0 |
Model 2 |
Mean Biomass (g/m2) |
#N/A |
Biomass Turnover (1/yr) |
#N/A |
|
|
|
|
|
|
|
|
Kb |
1/d |
0 |
0 |
" |
Gross PP
(g/m2-d) |
#N/A |
Total Resp (g/m2-d) |
#N/A |
|
|
|
|
|
|
|
|
Kr |
1/d/g/m2 |
0 |
0 |
" |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Ka |
1/d |
0 |
0 |
" |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Kc |
ppb |
0 |
0 |
" |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Ke |
1/d |
0 |
0 |
" |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Ku |
mg/m2 |
0 |
0 |
" |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Calibration Statistics for Period: |
07/01/01 |
thru |
12/31/02 |
Mean |
Mean |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Count |
Observed |
Predicted |
Residual |
Resid% |
RSE% |
R2 |
|
|
|
|
|
|
|
|
|
Mean Depth (cm) |
|
18 |
59.2 |
60.4 |
-1.2 |
-2% |
32% |
0% |
|
|
|
|
|
|
|
|
|
Flow (cm/day) |
|
18 |
4.64 |
4.33 |
0.30 |
7% |
50% |
78% |
|
|
|
|
|
|
|
|
|
Flow-Wtd-Mean Conc (ppb) |
18 |
125.4 |
105.0 |
20.4 |
19% |
|
|
|
|
|
|
|
|
|
|
|
Geometric Mean
Conc (ppb) |
18 |
82.4 |
66.8 |
15.6 |
23% |
64% |
0% |
|
|
|
|
|
|
|
|
|
Mean Conc (ppb) |
|
18 |
98.5 |
78.9 |
19.6 |
25% |
63% |
0% |
|
|
|
|
|
|
|
|
|
Outflow Load
(mg/m2-d) |
18 |
5.81 |
4.55 |
1.26 |
28% |
105% |
42% |
|
|
|
|
|
|
|
|
|
Pred Q x Conc (mg/m2-d) |
18 |
5.21 |
4.55 |
0.66 |
14% |
71% |
48% |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

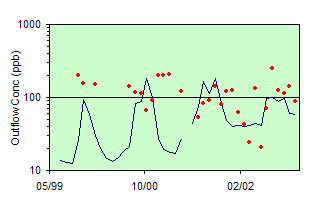

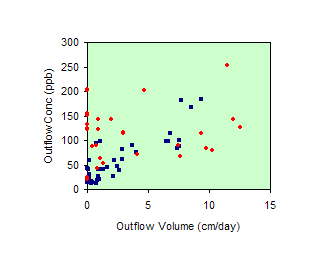

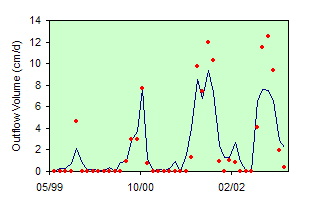

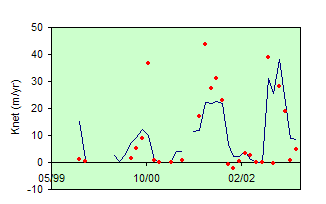

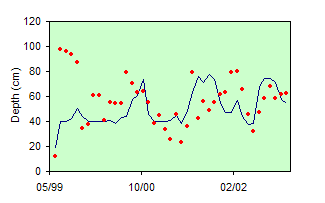

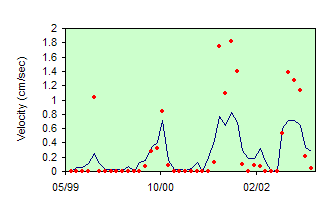

![](sta5_c1_files/dmsta_9163_image001.gif) ![](sta5_c1_files/dmsta_9163_image002.gif)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

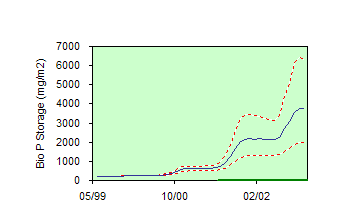

![](sta5_c1_files/dmsta_9163_image007.gif) ![](sta5_c1_files/dmsta_9163_image008.gif) ![](sta5_c1_files/dmsta_9163_image009.gif) ![](sta5_c1_files/dmsta_9163_image010.gif) ![](sta5_c1_files/dmsta_9163_image011.gif)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

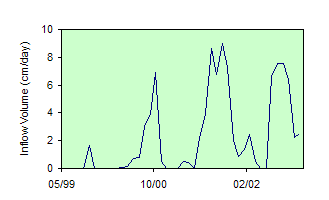

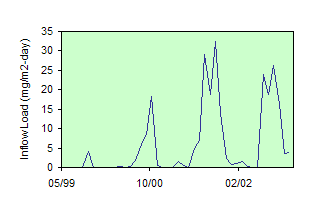

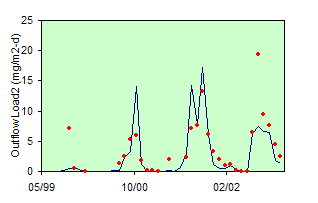

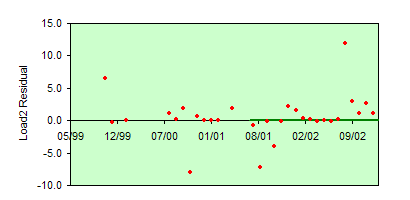

Obs Load2 =
Predicted Flow x Obs Conc |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

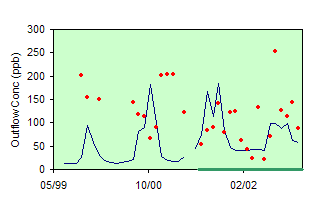

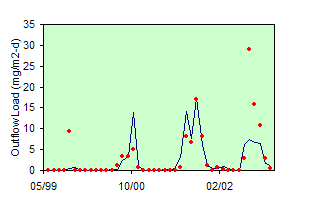

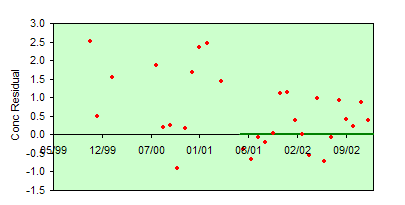

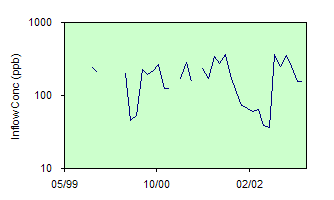

Green lines on x
axis of concentration plots indicate model calibration period. |
|
|
|
|
|
|
|
|
|
|
|
|
|
05/04/03 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
