DMSTA Simulation Results				Case:	WCA2A_S		Period:	01/01/93	to	10/31/99
Case:	WCA2A South of S10x - 8 to 12 km - Calibrated to 1993-1999
Input Series		S10ACD_812			Tanks in Series		3.0	Surface Area (km2)		31.5000
Simulation Period		01/01/93	thru	10/31/99	Mean Water Load  (cm/d)		6.8	Bypass Volume		0.0%
Output Period		01/01/93	thru	10/31/99	Max Water Load (cm/d)		76.5	Mean Depth (cm)		45

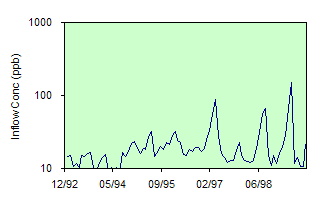

Startup Interval (days)		90	Iterations	1	Inflow Conc  (ppb)		16.8	Max Depth (cm)		111
Avg Interval (days)		30			Inflow P Load (mg/m2-yr)		375	Freq Depth <  5 cm		16.3%
Parameter Set:		none			Outflow FWM  Conc (ppb)		10.0	Load Reduction		41%
K  (m/yr)		42.06	Sm (mg/m2)	0	Outflow C with Bypass		10.0	Time Freq Conc > 10 ppb		29%
C1 (ppb)		22.0	Sp (mg/m2)	0	95th Percentile (ppb)		20.8	Vol Freq Conc > 10 ppb		46%
C0  (ppb)		2.0	Qout Intercept	1.5	Outflow Geo. Mean (ppb)		8.4	Storage Turnover (1/yr)		3.0

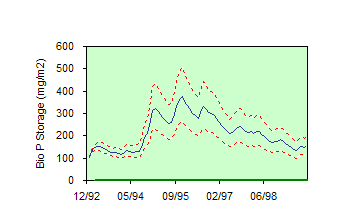

Zx  (cm)		60	Qout Exponent	4.0	Outflow GM,  Q>0 (ppb)		8.4	Mean Stored P (mg/m2)		213
Wtr Bal Error		0.0%			Knet-Plug Flow (m/yr)		14.5	Storage Inc/Net Removal		7%
Mass B Error		0.4%			Knet-NCSTR (m/yr)		16.1	Outfl. Seepage (cm/d/cm)		0
Ki	E/m2-d	0	0	Model 2	Mean Biomass (g/m2)		#N/A	Biomass Turnover (1/yr)		#N/A
Kb	1/d	0	0	"	Gross PP  (g/m2-d)		#N/A	Total Resp (g/m2-d)		#N/A
Kr	1/d/g/m2	0	0	"
Ka	1/d	0	0	"
Kc	ppb	0	0	"
Ke	1/d	0	0	"
Ku	mg/m2	0	0	"
Calibration  Statistics for Period:			04/01/93	thru	10/31/99	Mean	Mean
			Count	Observed	Predicted	Residual	Resid%	RSE%	R2

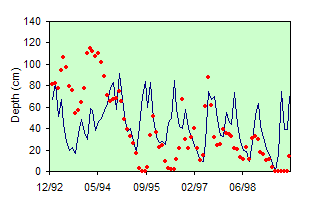

Mean Depth (cm)			80	39.8	43.7	-3.8	-9%	91%	0%
Flow (cm/day)			0	#N/A	#N/A	#N/A	#N/A	#N/A	#N/A
Flow-Wtd-Mean Conc (ppb)			49	10.4	9.9	0.5	5%
Geometric Mean Conc (ppb)			49	7.4	8.1	-0.7	-9%	63%	0%
Mean Conc (ppb)			49	9.8	8.8	1.0	11%	81%	0%
Outflow Load (mg/m2-d)			0	#N/A	#N/A	#N/A	#N/A	#N/A	#N/A
Pred Q x Conc (mg/m2-d)			49	0.64	0.62	0.02	3%	99%	67%
Obs Load2 = Predicted Flow x Obs Conc

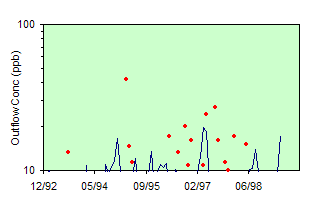

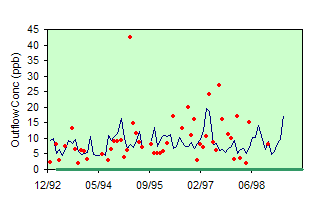

Green lines on x axis of concentration plots indicate model calibration period.
05/04/03
