Case:	PSTA_FSC1		Period:	07/01/01	to	12/23/02
Case:	PSTA Field Scale Cell 1, Limerock Substrate, Calib Aug 2002 -
Input Series		PSTA_FSC1			Tanks in Series		9.0	Surface Area (km2)		0.0194
Simulation Period		09/06/00	thru	12/23/02	Mean Water Load  (cm/d)		8.4	Bypass Volume		0.0%
Output Period		07/01/01	thru	12/23/02	Max Water Load (cm/d)		16.7	Mean Depth (cm)		27

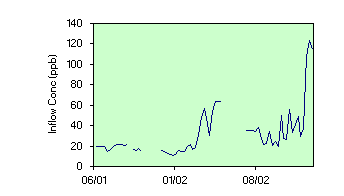

Startup Interval (days)		694	Iterations	1	Inflow Conc  (ppb)		30.8	Max Depth (cm)		45
Avg Interval (days)		7			Inflow P Load (mg/m2-yr)		1495	Freq Depth <  5 cm		0.0%
Parameter Set:		none			Outflow FWM  Conc (ppb)		18.7	Load Reduction		78%
K  (m/yr)		16.25	Sm (mg/m2)	0	Outflow C with Bypass		18.7	Time Freq Conc > 10 ppb		54%
C1 (ppb)		22.0	Sp (mg/m2)	0	95th Percentile (ppb)		32.8	Vol Freq Conc > 10 ppb		94%
C0  (ppb)		4.0	Qout Intercept	0.4	Outflow Geo. Mean (ppb)		11.9	Storage Turnover (1/yr)		1.6
Zx  (cm)		0	Qout Exponent	3.5	Outflow GM,  Q>0 (ppb)		16.6	Mean Stored P (mg/m2)		263
Wtr Bal Error		0.0%			Knet-Plug Flow (m/yr)		19.5	Storage Inc/Net Removal		75%
Mass B Error		1.2%			Knet-NCSTR (m/yr)		20.1	Outfl. Seepage (cm/d/cm)		0.1
Ki	E/m2-d	0	0	Model 2	Mean Biomass (g/m2)		#N/A	Biomass Turnover (1/yr)		#N/A
Kb	1/d	0	0	"	Gross PP  (g/m2-d)		#N/A	Total Resp (g/m2-d)		#N/A
Kr	1/d/g/m2	0	0	"
Ka	1/d	0	0	"
Kc	ppb	0	0	"
Ke	1/d	0	0	"
Ku	mg/m2	0	0	"
Calibration  Statistics for Period:			08/01/02	thru	11/30/02	Mean	Mean
			Count	Observed	Predicted	Residual	Resid%	RSE%	R2

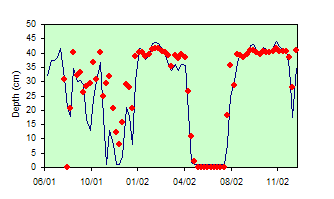

Mean Depth (cm)			18	39.3	39.4	-0.1	0%	8%	0%

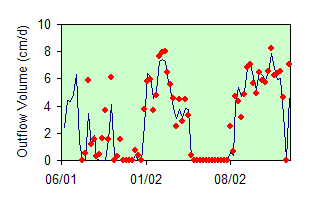

Flow (cm/day)			18	5.38	5.39	-0.02	0%	13%	84%
Flow-Wtd-Mean Conc (ppb)			18	19.4	19.8	-0.4	-2%
Geometric Mean Conc (ppb)			18	17.7	18.0	-0.4	-2%	33%	11%
Mean Conc (ppb)			18	19.0	18.9	0.1	1%	36%	23%

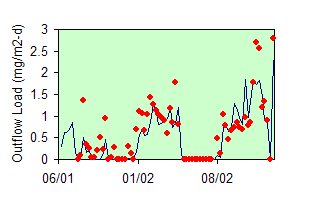

Outflow Load (mg/m2-d)			18	1.04	1.07	-0.02	-2%	43%	56%
Pred Q x Conc (mg/m2-d)			18	1.04	1.07	-0.03	-3%	42%	61%

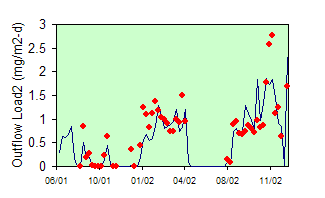

Obs Load2 = Predicted Flow x Obs Conc

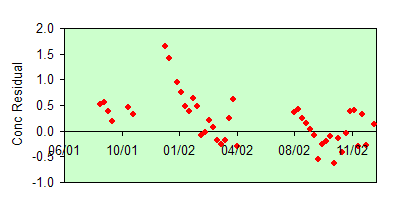

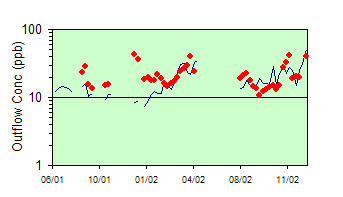

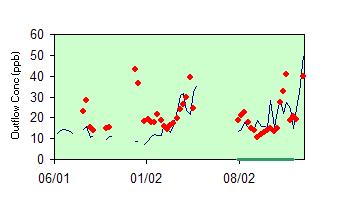

Green lines on x axis of concentration plots indicate model calibration period.
03/25/03
