Case:	PSTA_FSC3A		Period:	07/01/01	to	12/23/02
Case:	PSTA Field Scale Cell 3, Scraped to Caprock, With Inflow & Outflow Seepage, Calib Dec 2001 -
Input Series		PSTA_FSC3			Tanks in Series		4.2	Surface Area (km2)		0.0194
Simulation Period		09/06/00	thru	12/23/02	Mean Water Load  (cm/d)		9.3	Bypass Volume		0.0%
Output Period		07/01/01	thru	12/23/02	Max Water Load (cm/d)		17.2	Mean Depth (cm)		32

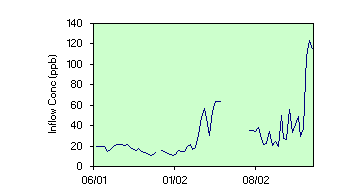

Startup Interval (days)		451	Iterations	1	Inflow Conc  (ppb)		30.2	Max Depth (cm)		40

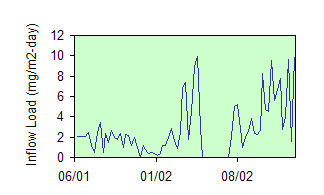

Avg Interval (days)		7			Inflow P Load (mg/m2-yr)		1001	Freq Depth <  5 cm		7.5%
Parameter Set:		none			Outflow FWM  Conc (ppb)		18.1	Load Reduction		44%
K  (m/yr)		20.25	Sm (mg/m2)	0	Outflow C with Bypass		18.1	Time Freq Conc > 10 ppb		71%
C1 (ppb)		22.0	Sp (mg/m2)	0	95th Percentile (ppb)		36.2	Vol Freq Conc > 10 ppb		91%
C0  (ppb)		4.0	Qout Intercept	2.0	Outflow Geo. Mean (ppb)		13.4	Storage Turnover (1/yr)		1.9

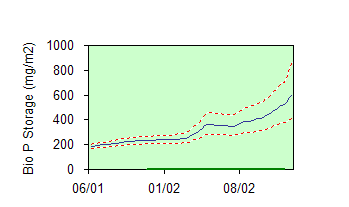

Zx  (cm)		0	Qout Exponent	4.0	Outflow GM,  Q>0 (ppb)		14.7	Mean Stored P (mg/m2)		316

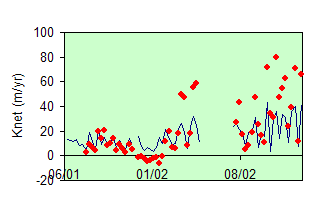

Wtr Bal Error		0.0%			Knet-Plug Flow (m/yr)		17.6	Storage Inc/Net Removal		72%
Mass B Error		0.3%			Knet-NCSTR (m/yr)		18.7	Outfl. Seepage (cm/d/cm)		0.01
Ki	E/m2-d	0	0	Model 2	Mean Biomass (g/m2)		#N/A	Biomass Turnover (1/yr)		#N/A
Kb	1/d	0	0	"	Gross PP  (g/m2-d)		#N/A	Total Resp (g/m2-d)		#N/A
Kr	1/d/g/m2	0	0	"
Ka	1/d	0	0	"
Kc	ppb	0	0	"
Ke	1/d	0	0	"
Ku	mg/m2	0	0	"
Calibration  Statistics for Period:			12/01/01	thru	11/30/02	Mean	Mean
			Count	Observed	Predicted	Residual	Resid%	RSE%	R2

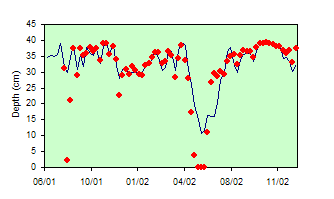

Mean Depth (cm)			53	30.4	31.1	-0.7	-2%	17%	74%

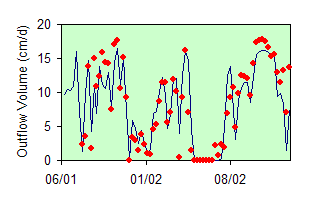

Flow (cm/day)			53	7.31	7.53	-0.22	-3%	30%	87%
Flow-Wtd-Mean Conc (ppb)			40	15.8	20.6	-4.8	-23%
Geometric Mean Conc (ppb)			40	16.0	15.4	0.6	4%	48%	0%
Mean Conc (ppb)			40	16.2	17.7	-1.4	-8%	50%	0%

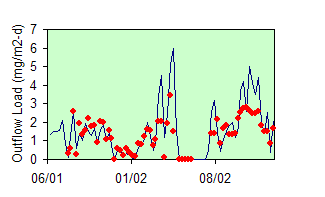

Outflow Load (mg/m2-d)			46	1.30	1.74	-0.44	-25%	85%	0%
Pred Q x Conc (mg/m2-d)			40	1.58	2.00	-0.42	-21%	63%	0%

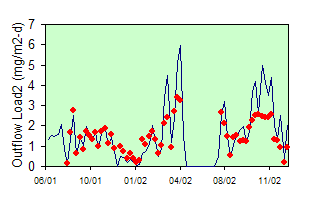

Obs Load2 = Predicted Flow x Obs Conc

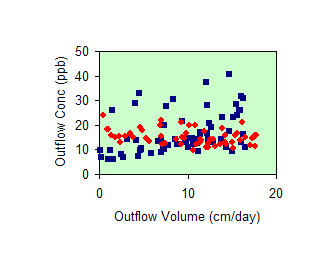

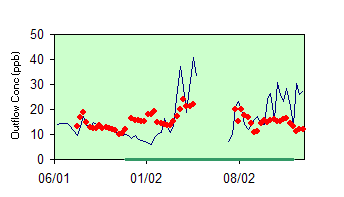

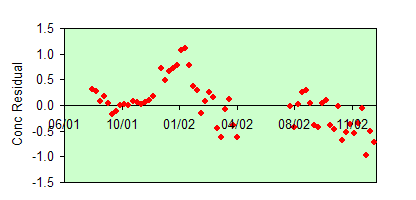

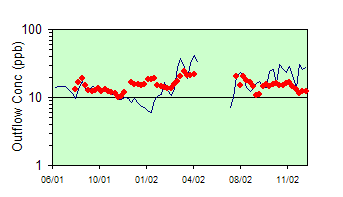

Green lines on x axis of concentration plots indicate model calibration period.
03/25/03
