Case:	PSTA_FSC4		Period:	07/01/01	to	12/23/02
Case:	PSTA Field Scale Cell 4 - Peat, Calib Aug 2002 -
Input Series		PSTA_FSC4			Tanks in Series		9.0	Surface Area (km2)		0.0194
Simulation Period		04/01/01	thru	12/23/02	Mean Water Load  (cm/d)		9.1	Bypass Volume		0.0%
Output Period		07/01/01	thru	12/23/02	Max Water Load (cm/d)		21.2	Mean Depth (cm)		14
Startup Interval (days)		487	Iterations	1	Inflow Conc  (ppb)		29.3	Max Depth (cm)		35
Avg Interval (days)		7			Inflow P Load (mg/m2-yr)		1326	Freq Depth <  5 cm		27.8%
Parameter Set:		none			Outflow FWM  Conc (ppb)		22.1	Load Reduction		90%
K  (m/yr)		8.38	Sm (mg/m2)	0	Outflow C with Bypass		22.1	Time Freq Conc > 10 ppb		38%
C1 (ppb)		22.0	Sp (mg/m2)	0	95th Percentile (ppb)		45.2	Vol Freq Conc > 10 ppb		100%
C0  (ppb)		4.0	Qout Intercept	0.8	Outflow Geo. Mean (ppb)		15.2	Storage Turnover (1/yr)		0.9
Zx  (cm)		0	Qout Exponent	3.5	Outflow GM,  Q>0 (ppb)		20.5	Mean Stored P (mg/m2)		143

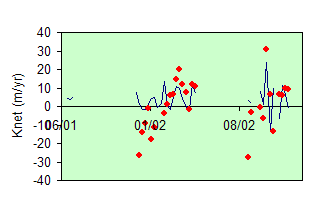

Wtr Bal Error		0.0%			Knet-Plug Flow (m/yr)		16.5	Storage Inc/Net Removal		82%
Mass B Error		1.1%			Knet-NCSTR (m/yr)		16.8	Outfl. Seepage (cm/d/cm)		0.22
Ki	E/m2-d	0	0	Model 2	Mean Biomass (g/m2)		#N/A	Biomass Turnover (1/yr)		#N/A
Kb	1/d	0	0	"	Gross PP  (g/m2-d)		#N/A	Total Resp (g/m2-d)		#N/A
Kr	1/d/g/m2	0	0	"
Ka	1/d	0	0	"
Kc	ppb	0	0	"
Ke	1/d	0	0	"
Ku	mg/m2	0	0	"
Calibration  Statistics for Period:			08/01/02	thru	11/30/02	Mean	Mean
			Count	Observed	Predicted	Residual	Resid%	RSE%	R2

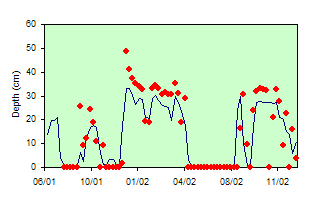

Mean Depth (cm)			18	18.0	18.5	-0.4	-2%	66%	23%
Flow (cm/day)			18	1.61	1.62	-0.01	-1%	125%	0%
Flow-Wtd-Mean Conc (ppb)			11	31.2	23.0	8.3	36%
Geometric Mean Conc (ppb)			11	28.1	25.3	2.7	11%	49%	0%
Mean Conc (ppb)			11	29.3	27.0	2.3	8%	49%	0%
Outflow Load (mg/m2-d)			17	0.51	0.41	0.10	25%	128%	0%
Pred Q x Conc (mg/m2-d)			13	0.56	0.49	0.07	14%	72%	46%

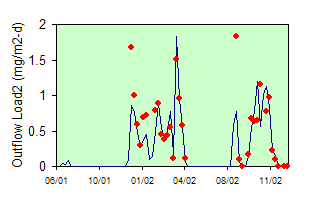

Obs Load2 = Predicted Flow x Obs Conc

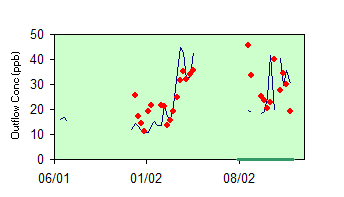

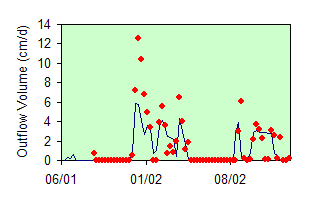

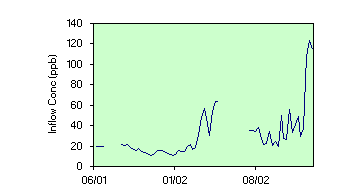

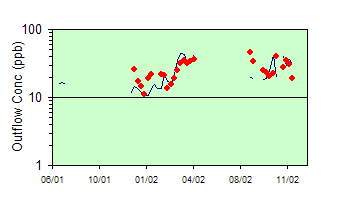

Green lines on x axis of concentration plots indicate model calibration period.
03/25/03
