DMSTA Simulation Results				Case:	SAV_STC4_T		Period:	06/15/00	to	04/30/02
Case:	SAV South Test Cell 4 - No Limerock Berm
Input Series		STC4_O			Tanks in Series		5.8	Surface Area (km2)		0.0025
Simulation Period		06/15/00	thru	04/30/02	Mean Water Load  (cm/d)		5.3	Bypass Volume		0.0%
Output Period		06/15/00	thru	04/30/02	Max Water Load (cm/d)		7.0	Mean Depth (cm)		28

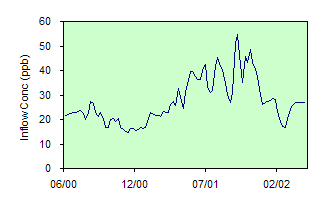

Startup Interval (days)		365	Iterations	1	Inflow Conc  (ppb)		27.8	Max Depth (cm)		32

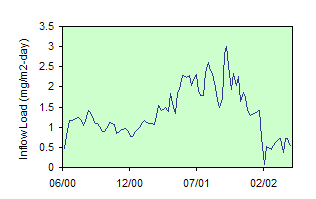

Avg Interval (days)		7			Inflow P Load (mg/m2-yr)		781	Freq Depth <  5 cm		0.0%
Parameter Set:		NEWS			Outflow FWM  Conc (ppb)		13.6	Load Reduction		51%
K  (m/yr)		128.70	Sm (mg/m2)	400	Outflow C with Bypass		13.6	Time Freq Conc > 10 ppb		80%
C1 (ppb)		22.0	Sp (mg/m2)	80	95th Percentile (ppb)		17.9	Vol Freq Conc > 10 ppb		89%
C0  (ppb)		12.0	Qout Intercept	0.0	Outflow Geo. Mean (ppb)		12.6	Storage Turnover (1/yr)		1.7
Zx  (cm)		60	Qout Exponent	0.0	Outflow GM,  Q>0 (ppb)		12.8	Mean Stored P (mg/m2)		243

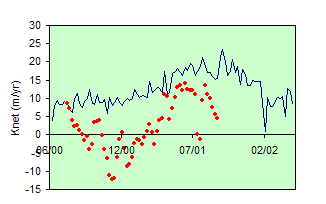

Wtr Bal Error		0.0%			Knet-Plug Flow (m/yr)		14.1	Storage Inc/Net Removal		45%
Mass B Error		-0.1%			Knet-NCSTR (m/yr)		15.1	Outfl. Seepage (cm/d/cm)		0
Ki	E/m2-d	0	0	Model 2	Mean Biomass (g/m2)		#N/A	Biomass Turnover (1/yr)		#N/A
Kb	1/d	0	0	"	Gross PP  (g/m2-d)		#N/A	Total Resp (g/m2-d)		#N/A
Kr	1/d/g/m2	0	0	"
Ka	1/d	0	0	"
Kc	ppb	0	0	"
Ke	1/d	0	0	"
Ku	mg/m2	0	0	"
Calibration  Statistics for Period:			06/15/01	thru	09/21/01	Mean	Mean
			Count	Observed	Predicted	Residual	Resid%	RSE%	R2

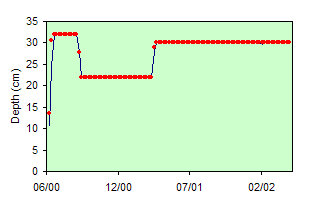

Mean Depth (cm)			14	30.0	30.0	0.0	0%	0%	#N/A
Flow (cm/day)			0	#N/A	#N/A	#N/A	#N/A	#N/A	#N/A
Flow-Wtd-Mean Conc (ppb)			14	24.4	16.4	8.0	49%
Geometric Mean Conc (ppb)			14	23.9	16.3	7.7	47%	43%	0%
Mean Conc (ppb)			14	24.4	16.4	8.0	49%	38%	0%

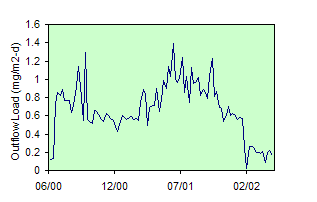

Outflow Load (mg/m2-d)			0	#N/A	#N/A	#N/A	#N/A	#N/A	#N/A
Pred Q x Conc (mg/m2-d)			14	1.50	1.01	0.49	49%	39%	0%

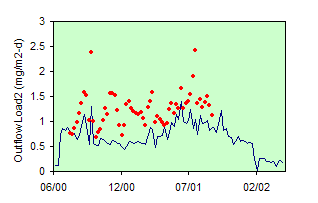

Obs Load2 = Predicted Flow x Obs Conc

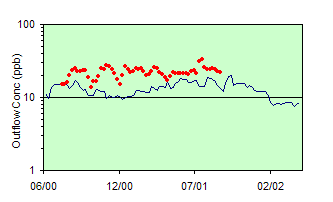

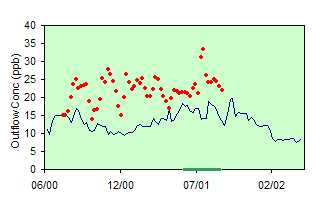

Green lines on x axis of concentration plots indicate model calibration period.
06/11/02
