DMSTA Simulation Results				Case:	STAOpt_15S_C_T		Period:	10/27/99	to	03/31/02
Case:	STA Optimization test cells 15 South (Control HLR)
Input Series		STAOpt15S			Tanks in Series		6.0	Surface Area (km2)		0.0022
Simulation Period		10/27/99	thru	03/31/02	Mean Water Load  (cm/d)		3.4	Bypass Volume		0.0%

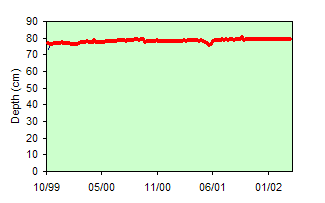

Output Period		10/27/99	thru	03/31/02	Max Water Load (cm/d)		5.6	Mean Depth (cm)		78

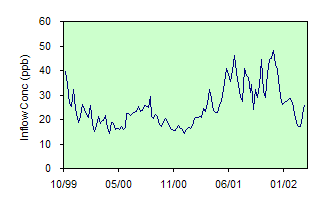

Startup Interval (days)		371	Iterations	1	Inflow Conc  (ppb)		25.3	Max Depth (cm)		85
Avg Interval (days)		7			Inflow P Load (mg/m2-yr)		287	Freq Depth <  5 cm		0.0%
Parameter Set:		EMERG			Outflow FWM  Conc (ppb)		11.1	Load Reduction		56%
K  (m/yr)		15.70	Sm (mg/m2)	0	Outflow C with Bypass		11.1	Time Freq Conc > 10 ppb		100%
C1 (ppb)		22.0	Sp (mg/m2)	0	95th Percentile (ppb)		12.0	Vol Freq Conc > 10 ppb		100%
C0  (ppb)		4.0	Qout Intercept	0.0	Outflow Geo. Mean (ppb)		11.0	Storage Turnover (1/yr)		1.1
Zx  (cm)		60	Qout Exponent	0.0	Outflow GM,  Q>0 (ppb)		11.0	Mean Stored P (mg/m2)		535
Wtr Bal Error		0.0%			Knet-Plug Flow (m/yr)		10.5	Storage Inc/Net Removal		23%
Mass B Error		0.0%			Knet-NCSTR (m/yr)		11.4	Outfl. Seepage (cm/d/cm)		0
Ki	E/m2-d	0	0	Model 2	Mean Biomass (g/m2)		#N/A	Biomass Turnover (1/yr)		#N/A
Kb	1/d	0	0	"	Gross PP  (g/m2-d)		#N/A	Total Resp (g/m2-d)		#N/A
Kr	1/d/g/m2	0	0	"
Ka	1/d	0	0	"
Kc	ppb	0	0	"
Ke	1/d	0	0	"
Ku	mg/m2	0	0	"
Calibration  Statistics for Period:			11/01/00	thru	09/30/01	Mean	Mean
			Count	Observed	Predicted	Residual	Resid%	RSE%	R2
Mean Depth (cm)			47	78.3	78.3	0.0	0%	0%	100%
Flow (cm/day)			0	#N/A	#N/A	#N/A	#N/A	#N/A	#N/A
Flow-Wtd-Mean Conc (ppb)			47	26.9	11.0	15.9	145%
Geometric Mean Conc (ppb)			47	24.7	10.9	13.9	127%	87%	0%
Mean Conc (ppb)			47	26.2	10.9	15.3	140%	66%	0%

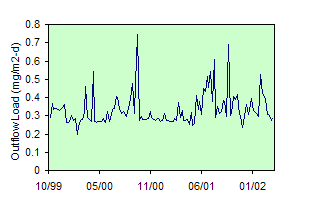

Outflow Load (mg/m2-d)			0	#N/A	#N/A	#N/A	#N/A	#N/A	#N/A
Pred Q x Conc (mg/m2-d)			47	0.80	0.33	0.47	145%	71%	0%

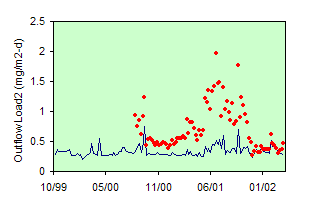

Obs Load2 = Predicted Flow x Obs Conc

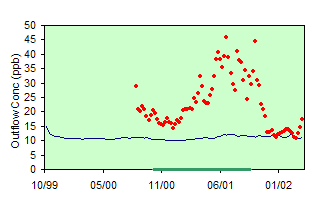

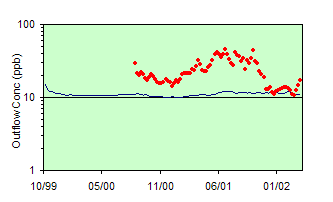

Green lines on x axis of concentration plots indicate model calibration period.
06/11/02
