DMSTA Simulation Results Case: OEW Period: 07/01/88 to 08/08/03
Case: Orlando Easterly Wetlands / Iron Bridge; 1989-2003; Heterogeneous multi-cell treatment wetlands;  deep & shallow cells; emergents, hardwoods, lake; started on cow pasture (high initial P?); depth information limited; P detection limit = 20 ppb; inflow p declined from 600 to 100 ppb; experimental manipulations began in mid 1997 (southern flow path taken off line)
Input Series oew Tanks in Series 6.0 Surface Area (km2) 4.8182
Simulation Period 07/01/83 thru 08/08/03 Mean Water Load  (cm/d) 1.5 Mean Depth (cm) 70
Output Period 07/01/88 thru 08/08/03 Max Water Load (cm/d) 2.4 Max Depth (cm) 70
Startup Interval (days) 1827 Iterations 1 Inflow Conc  (ppb) 265.9 Freq Depth <  5 cm 0.0%

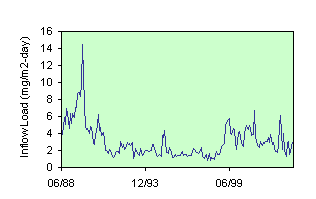

Avg Interval (days) 30 Inflow P Load (mg/m2-yr) 1119 Load Reduction 79%
Parameter Set:   none Outflow FWM  Conc (ppb) 54.9 Time Freq Conc > 10 ppb 100%
K  (m/yr) 10.57 Sm (mg/m2)  0 Outflow C with Bypass 54.9 Vol Freq Conc > 10 ppb 100%
C1 (ppb) 22.0 Sp (mg/m2) 0 95th Percentile (ppb) 72.2 Storage Turnover (1/yr) 8.2

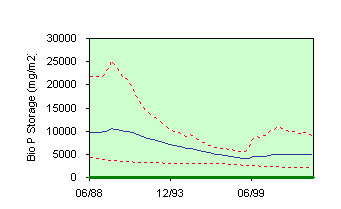

C0  (ppb) 4.0 Qout Intercept 0.0 Outflow Geo. Mean (ppb) 55.0 Mean Stored P (mg/m2) 6603
Zx  (cm) 60 Qout Exponent 0.0 Outflow GM,  Q>0 (ppb) 55.0 Storage Inc/Net Removal -35%

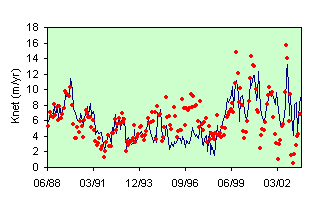

Wtr Bal Error 0.0% Knet-Plug Flow (m/yr) 6.8 Outfl. Seepage (cm/d/cm) 0
Mass B Error -0.2% Knet-NCSTR (m/yr) 7.8 Seepage Loss 0%
Calibration  Statistics for Period: 07/01/88 thru 08/08/03

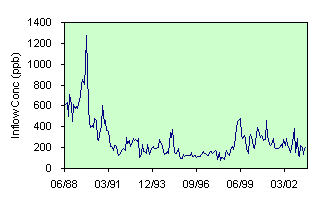

Inflow P Conc (ppb)  = 266 Mean Mean
HLR (cm/d) = 1.2 Count Observed Predicted Residual Resid% RSE% R2

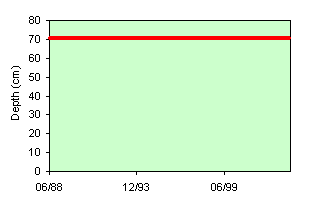

Mean Depth (cm) 183 70.2 70.0 0.2 0% 0% 0%

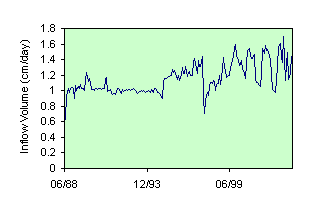

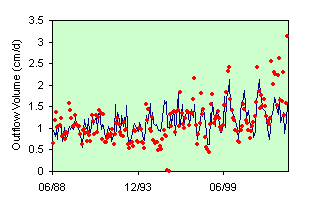

Flow (cm/day) 183 1.15 1.16 -0.01 -1% 31% 43%
Flow-Wtd-Mean Conc (ppb) 182 61.3 55.0 6.3 11%
Geometric Mean Conc (ppb) 182 51.0 55.1 -4.1 -7% 50% 0%
Mean Conc (ppb) 182 62.2 56.0 6.2 11% 49% 0%

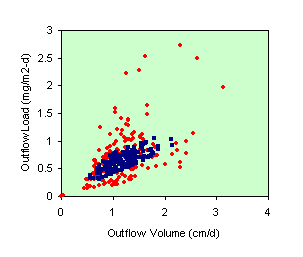

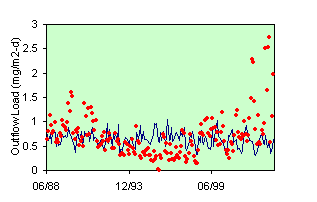

Outflow Load (mg/m2-d) 183 0.71 0.64 0.07 11% 67% 0%
Pred Q x Conc (mg/m2-d) 182 0.71 0.64 0.07 11% 53% 0%

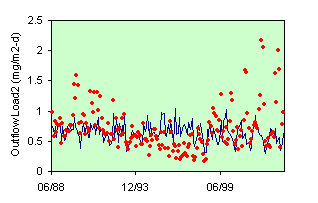

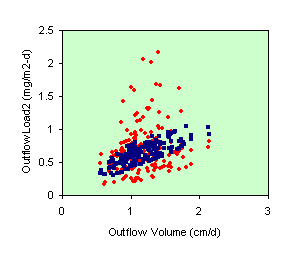

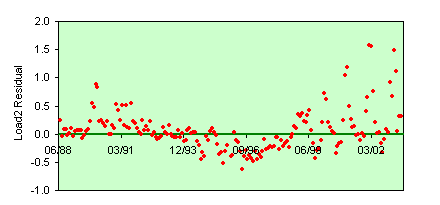

Obs Load2 = Predicted Flow x Obs Conc

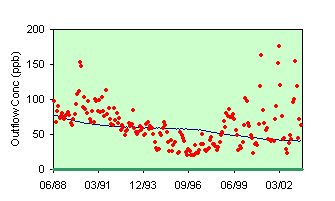

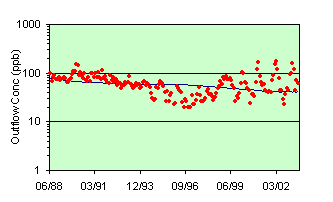

Green lines on x axis of concentration plots indicate model calibration period.
10/29/03
