Water Quality Transects - WCA Outflow Structures to Florida Bay

D R A F T - 03/30/02

Project Index

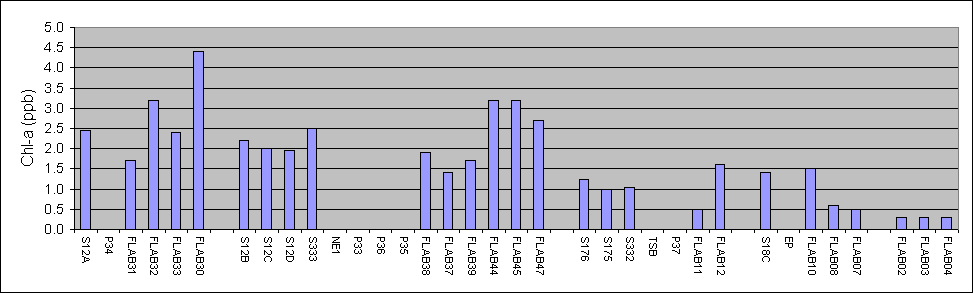

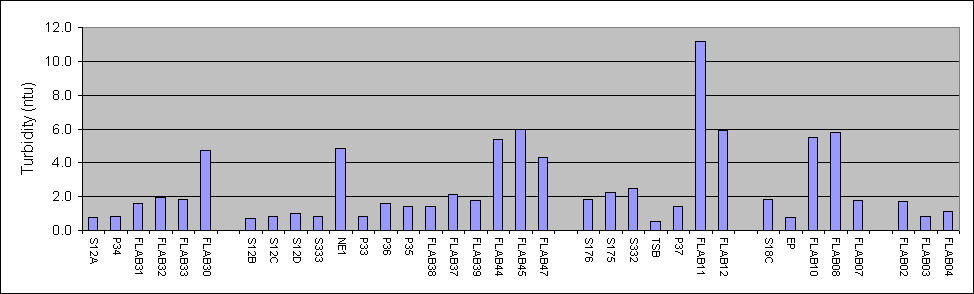

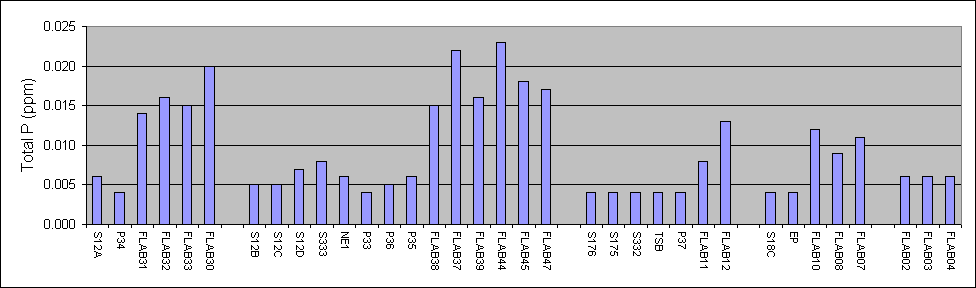

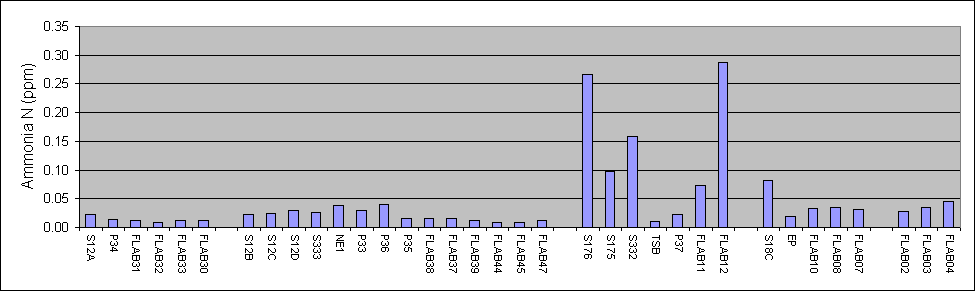

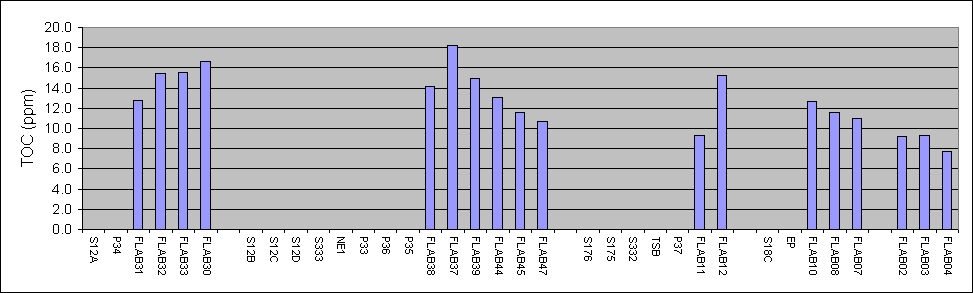

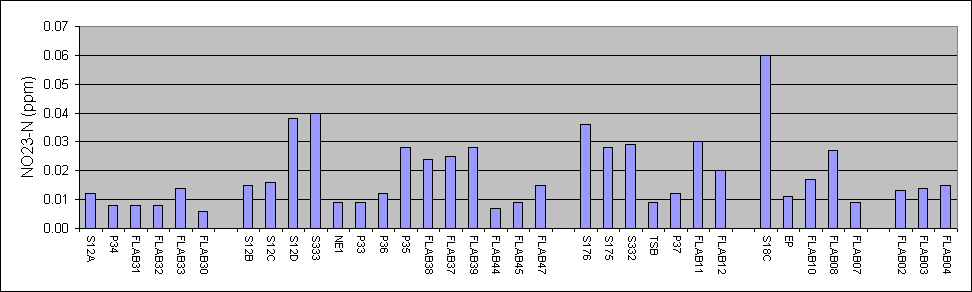

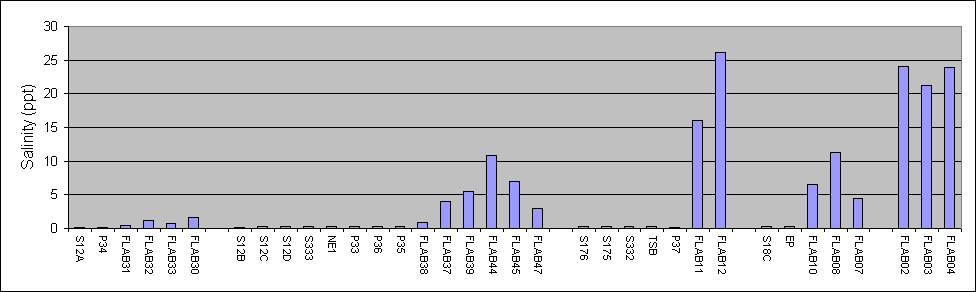

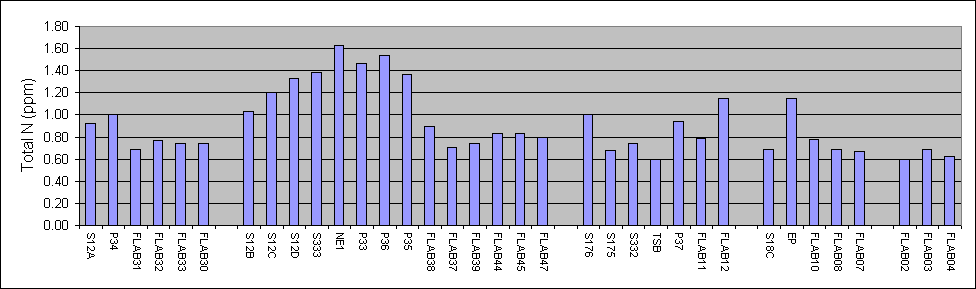

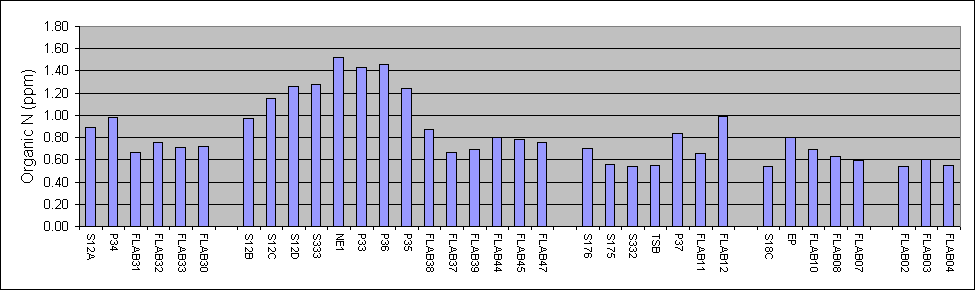

The following charts show spatial variations in water quality along transects starting at structure discharges (outflows from WCA's or regional canals) and ending in the coastal areas of each ENP basin.  Coastal stations (codes starting with 'FLAB') are operated by FIU.  Structure stations (starting with 'S') and marsh stations (starting with 'P') are operated by SFWMD.   Median concentrations for 1995-1997 are plotted.  Stations were sampled monthly or biweekly during this period.

The following variables are plotted below :

Basins shown (from left to right) include Broad, Shark Taylor, Coastal, & Barnes Sound.

Click here to see a  basin map with station locations.

Click here to see concentrations dispayed in map form.
