Reciprocal functions (cscx=1/sinx and secx=1/cosx)
Unlike normal sine or cosine functions, these reciprocal
functions have asymptotes. For cosine functions, to
find the asymptotes at x= /2+n,
where n is an integer and the cosine function is 0 at
these x values. Similarly for sine functions have asymptotes
when sinx=0 and that is at x= n.
To sketch these functions, you should first graph the
reciprocal function, the sine or cosine function. For
example if you are trying to sketch y=cscx, first sketch
y=sinx. Then take the reciprocals of the y coordinates
to obtain points on the graph of y=cscx.

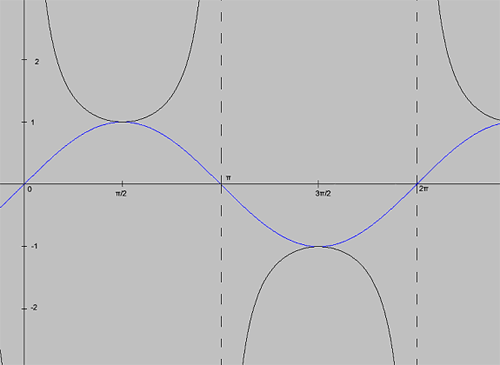

The blue line is y=sinx
The Black line is y=cscx
The dotted lines are the asymptotes at
and 2
|
